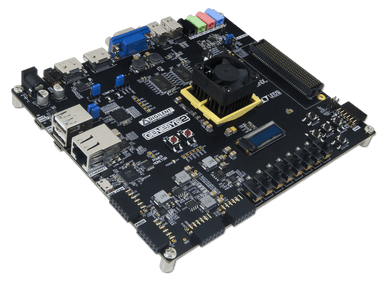

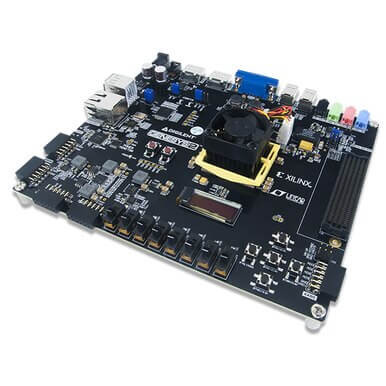

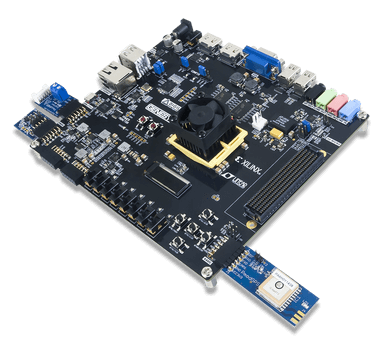

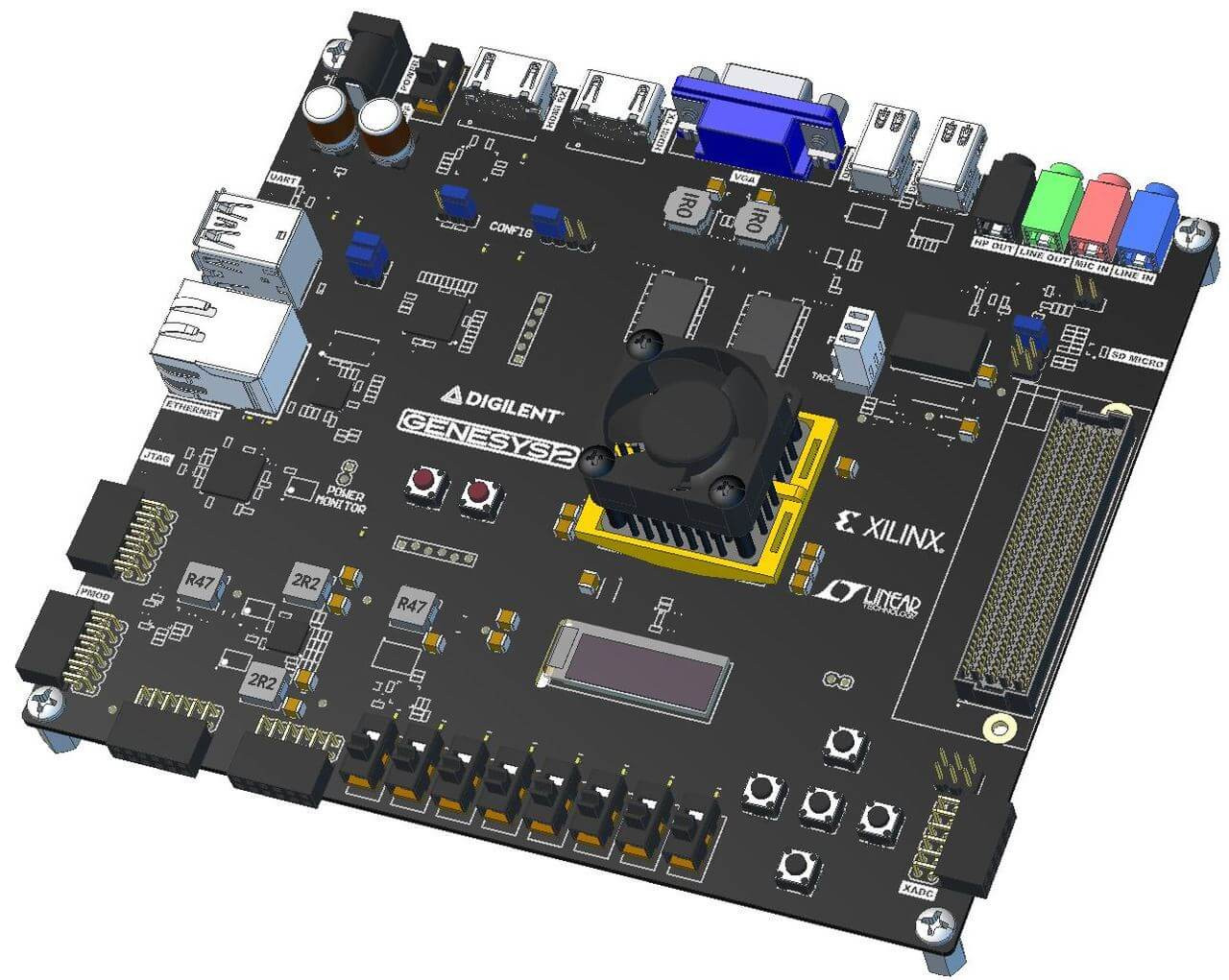

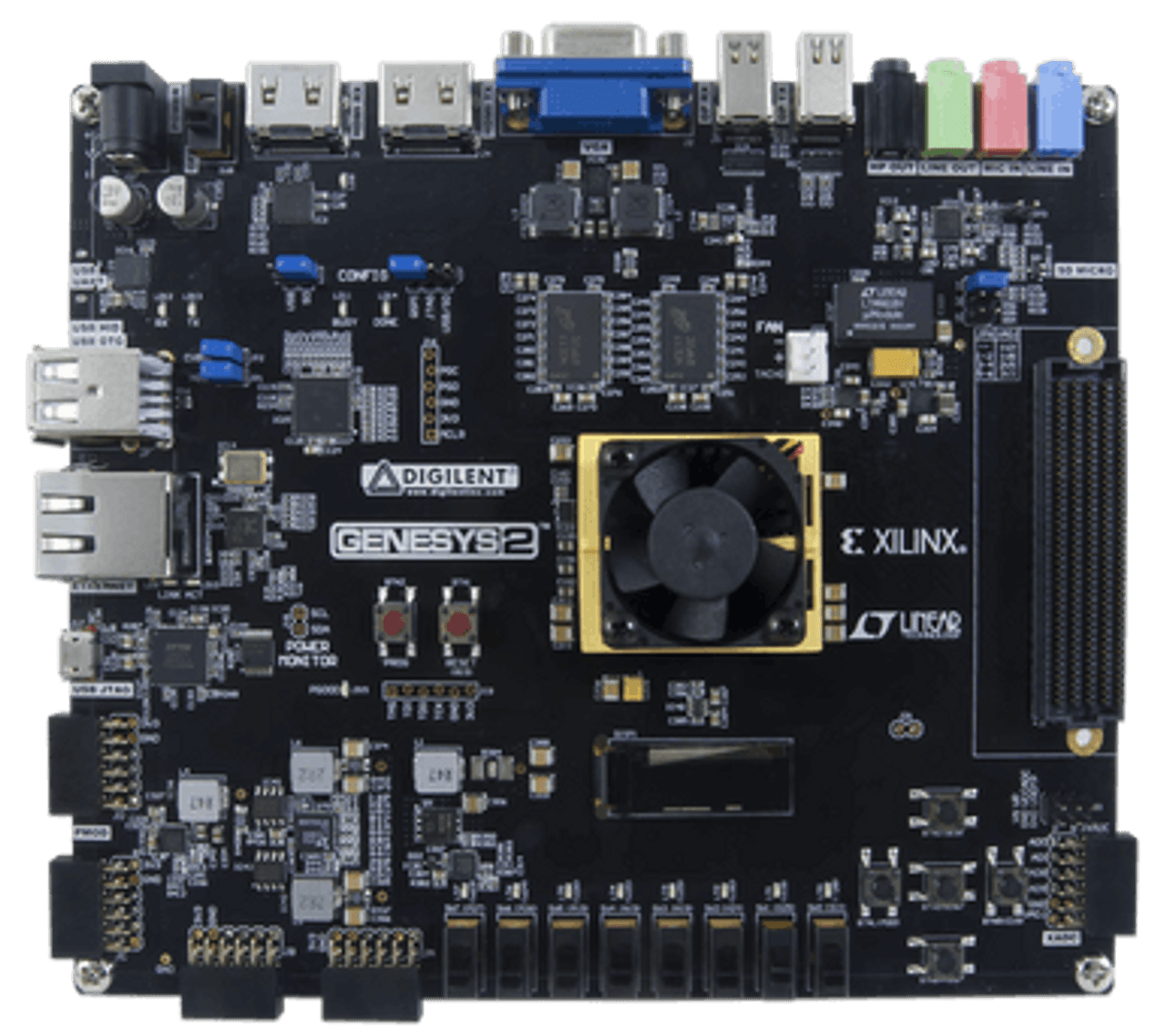

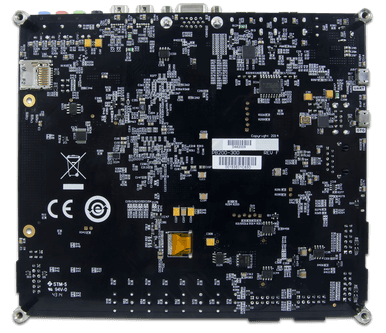

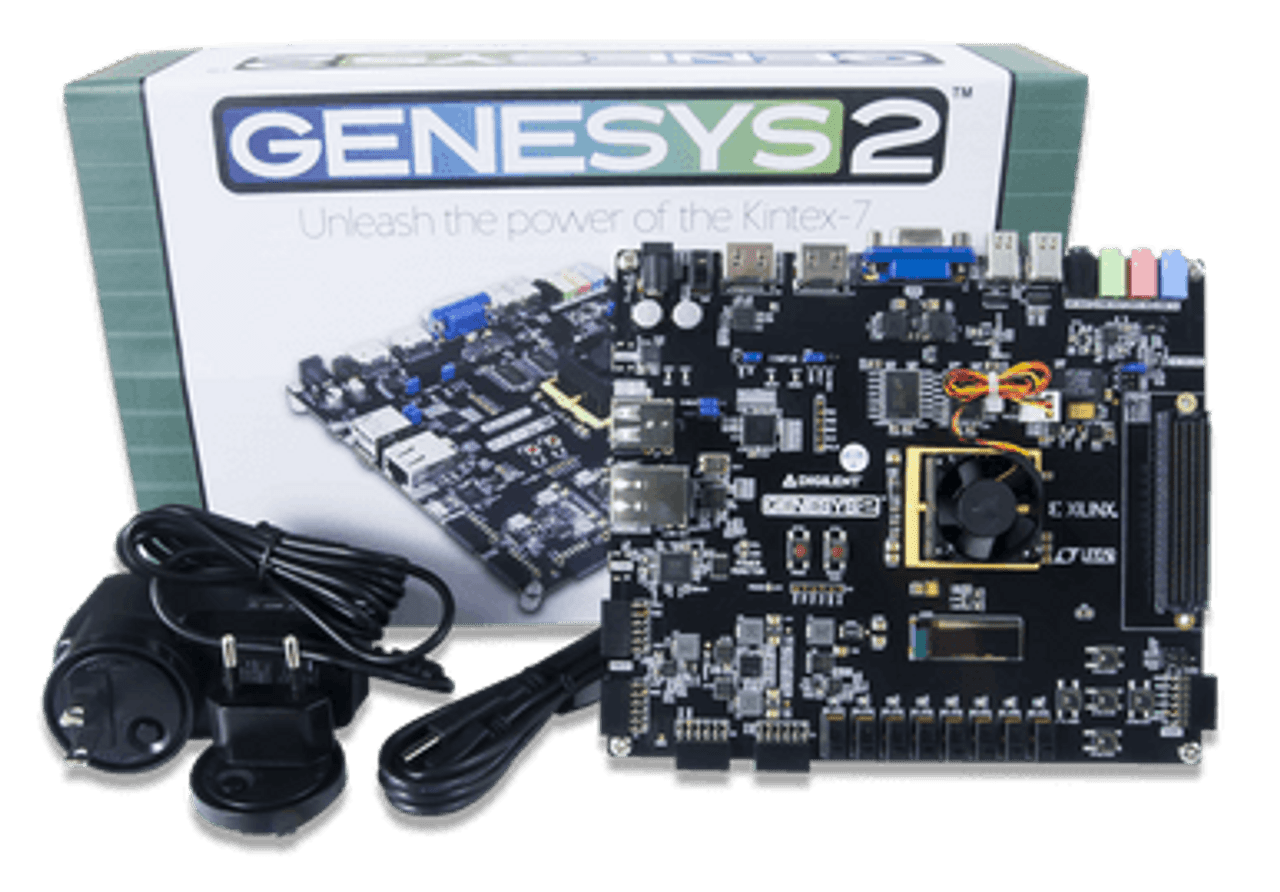

The Genesys 2 is a high-performance, ready-to-use FPGA development board built around the AMD Kintex™ 7 FPGA. The Genesys 2 is a powerhouse for data and video processing applications, but offers a variety of peripherals making it a great solution for a wide array of projects.
Everything needed for robust multimedia applications is already available on the board: DisplayPort connectors, HDMI sink and source, 16-bit VGA, 128×32 pixel OLED screen, and an audio codec with four 3.5mm jacks. One can quickly get started with A/V, image processing, or other multimedia applications without needing additional hardware.
Working on other applications, or looking for more customizability? The Genesys 2 also offers five Pmod ports and a fully populated FMC HPC connector, which provide limitless expansion options. Additionally, the 10/100/1000 Ethernet, USB 2.0, and a USB HID host for mice and keyboards make the Genesys 2 easily integrated with other systems.
The powerful AMD Kintex™ 7 XC7K325T-2FFG900C will have no trouble keeping up with your designs made in Vivado Design Suite or ISE. The free Standard Edition of the AMD Vivado™ Design Suite does not support the Kintex-7 325T, but a voucher is provided for Vivado Enterprise Edition at no extra cost.
Guides and demos are available to help users get started quickly with the Genesys 2. These can be found through the Support Materials tab.
The Genesys 2 is a high-performance, ready-to-use FPGA development board built around the AMD Kintex™ 7 FPGA. The Genesys 2 is a powerhouse for data and video processing applications, but offers a variety of peripherals making it a great solution for a wide array of projects.
Everything needed for robust multimedia applications is already available on the board: DisplayPort connectors, HDMI sink and source, 16-bit VGA, 128×32 pixel OLED screen, and an audio codec with four 3.5mm jacks. One can quickly get started with A/V, image processing, or other multimedia applications without needing additional hardware.
Working on other applications, or looking for more customizability? The Genesys 2 also offers five Pmod ports and a fully populated FMC HPC connector, which provide limitless expansion options. Additionally, the 10/100/1000 Ethernet, USB 2.0, and a USB HID host for mice and keyboards make the Genesys 2 easily integrated with other systems.
The powerful AMD Kintex™ 7 XC7K325T-2FFG900C will have no trouble keeping up with your designs made in Vivado Design Suite or ISE. The free Standard Edition of the AMD Vivado™ Design Suite does not support the Kintex-7 325T, but a voucher is provided for Vivado Enterprise Edition at no extra cost.
Guides and demos are available to help users get started quickly with the Genesys 2. These can be found through the Support Materials tab.
