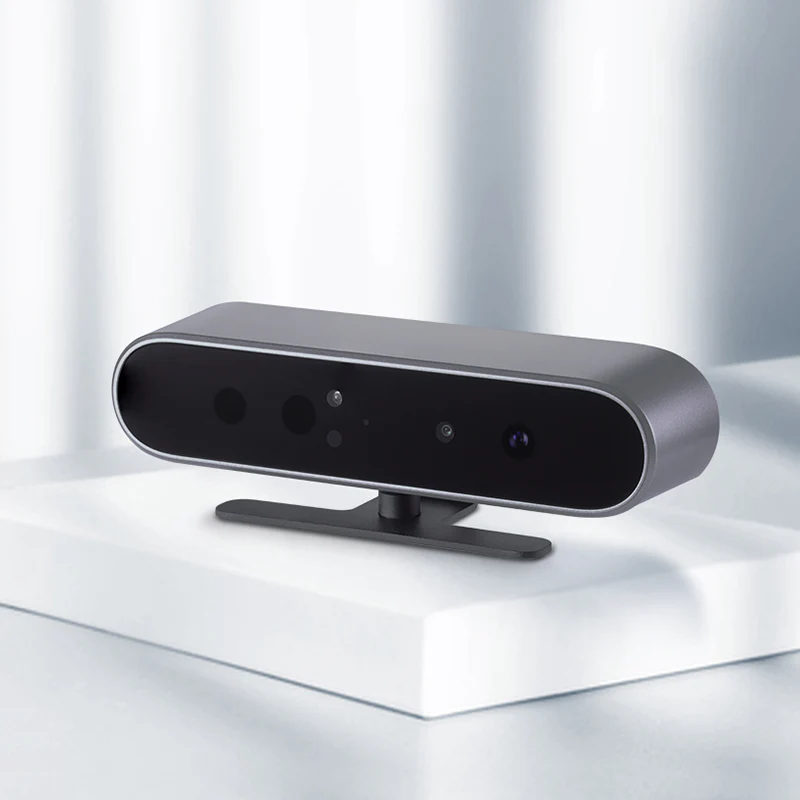

Orbbec Astra 2

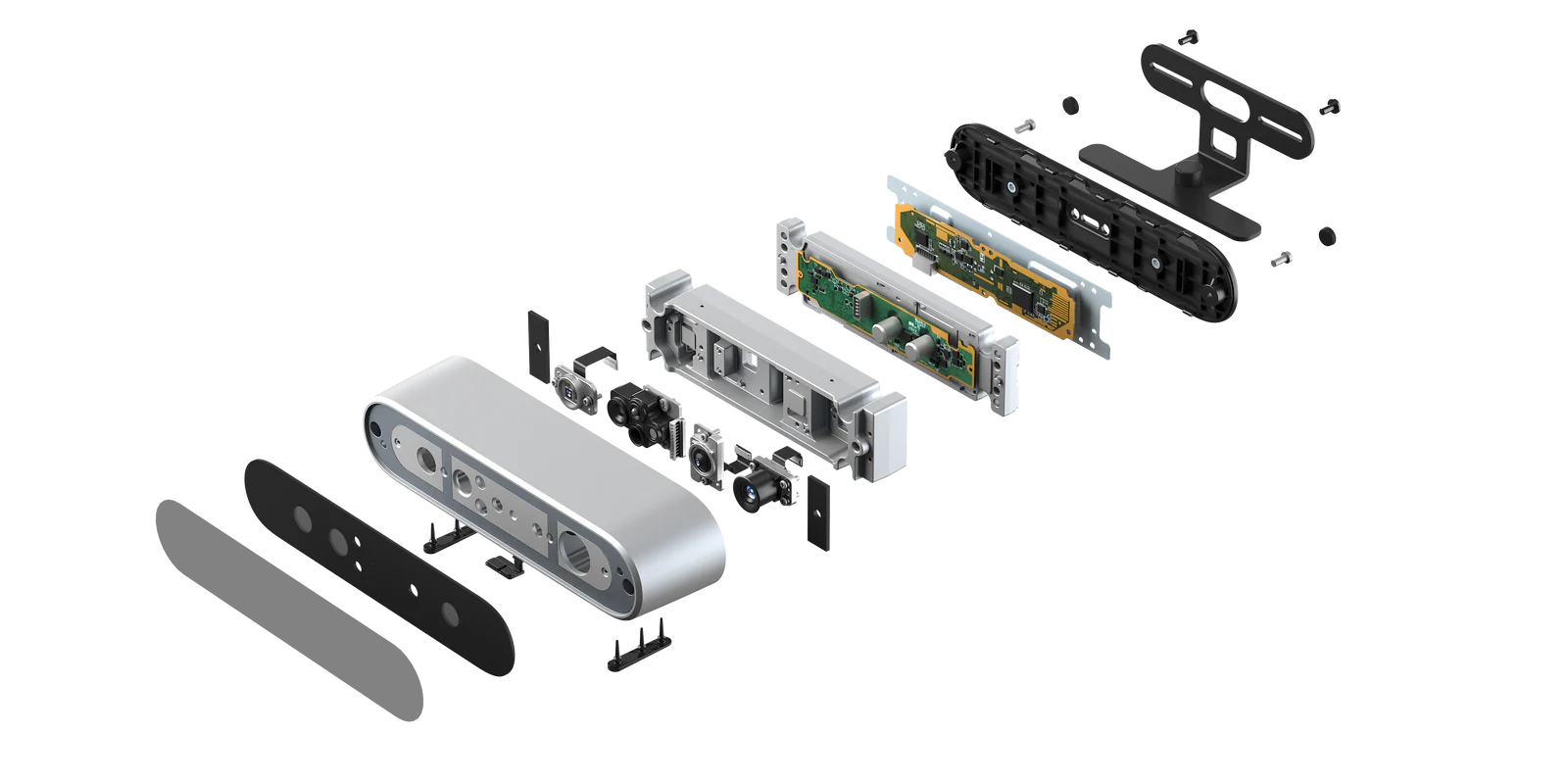

The Astra 2 is the flagship model of the Orbbec Astra Series, leveraging structured light technology. It is equipped with Orbbec’s custom ASIC MX6600, delivering high-quality depth processing. The Astra 2 retains the FoV and depth measurement range of its predecessors while featuring a fully upgraded optical system that enhances measurement accuracy and stability. Additionally, it supports multi-camera synchronization to prevent interference when multiple cameras are used simultaneously.

What’s Included:

● Astra 2 3D Camera
● USB-C to USB-C cable

Operating Environment
Indoor / Semi-outdoor
Depth Technology
Structured Light
Depth Range
0.6m – 8m
Ideal Range
0.6m – 5m
IMU
Supported
Camera Driver
USB 3.0 & USB 2.0
SDK
Orbbec SDK
Baseline
75mm
Spatial Precision
≤0.16%(1600 x 1200 @ 1m & 81% ROI); ≤0.3% (1600 x 1200 @ 2m & 81% ROI)
Depth FoV
58° x 45°
Depth Resolution and Frame Rate
Up to ：1600×1200@30fps
Depth Shutter Type
Global Shutter
RGB FoV
75°x 46°
RGB Resolution and Frame Rate
Up to ：1920×1080@30 fps
RGB Shutter Type
Rolling Shutter
Power supply
DC 5V & ≥1.5A
Power Consumption
≤3.0W
Connector
USB Type-C
Multi-device Sync port
8-pin
Operating Temperature
0℃ – 35℃
Weight
195g / 240g (with mounting base)
Dimensions (W*H*D)
144.5 x 34.6 x 35.8 mm / 144.5 x 45.3 x 38.6 mm (with mounting base)
Installation
Bottom
