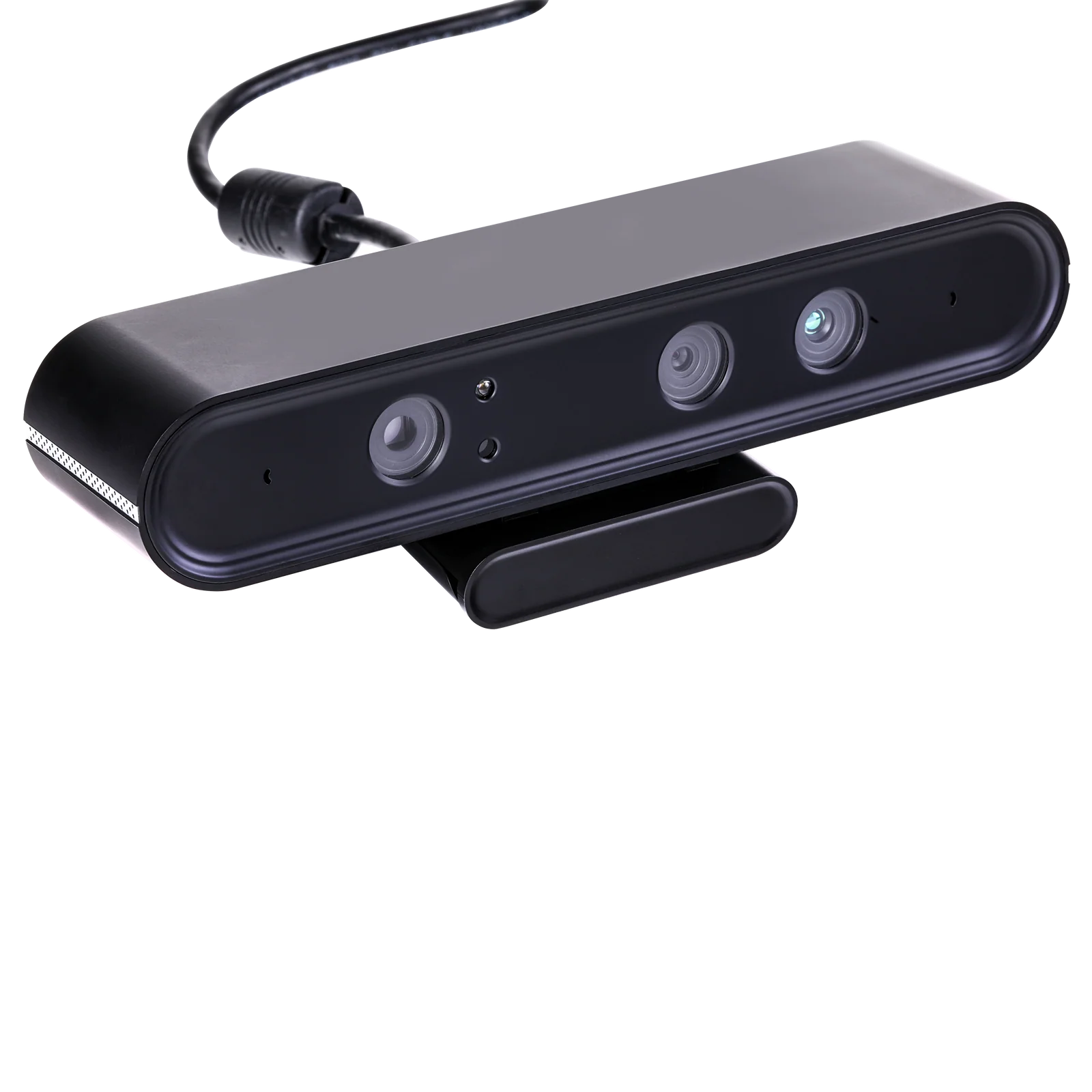

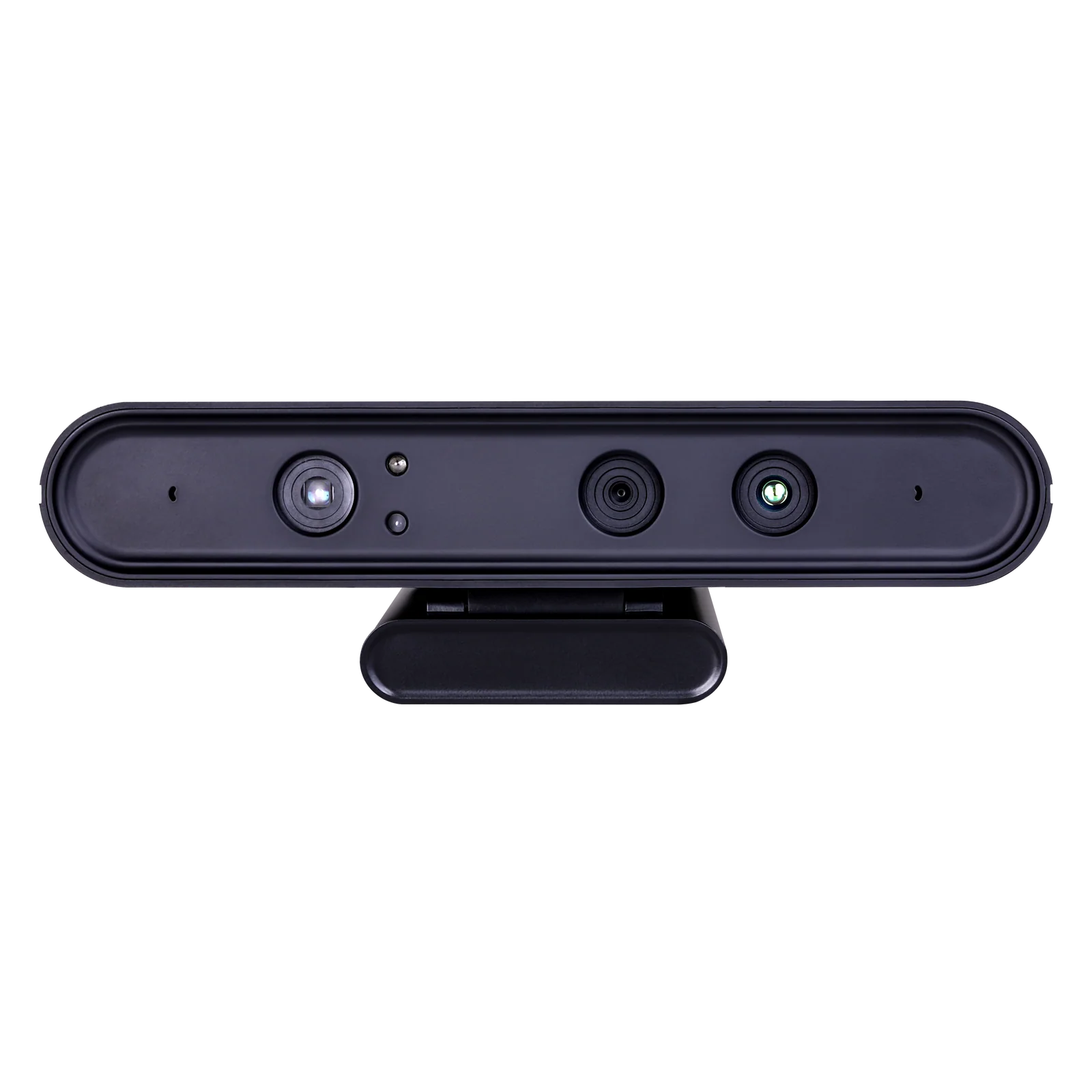

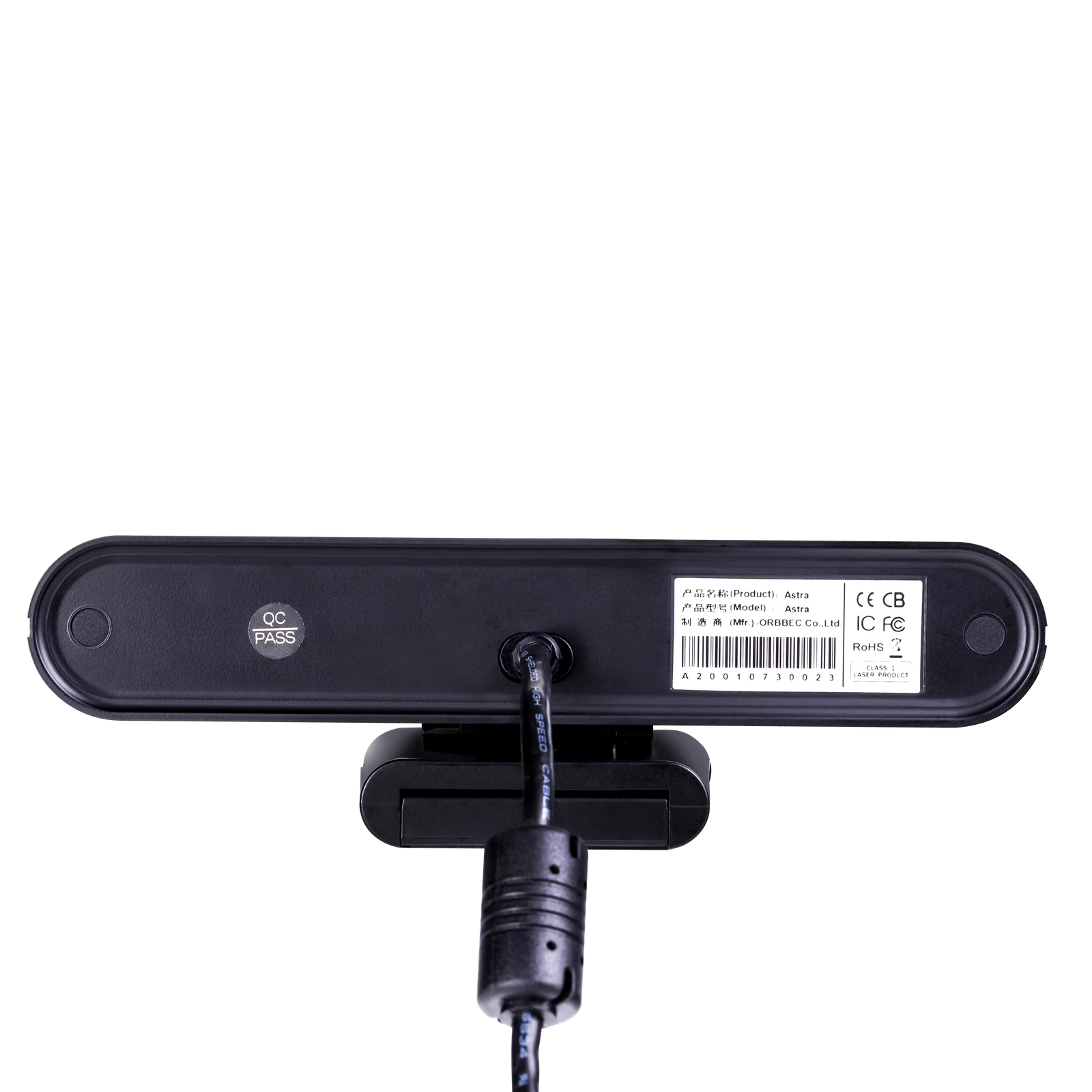

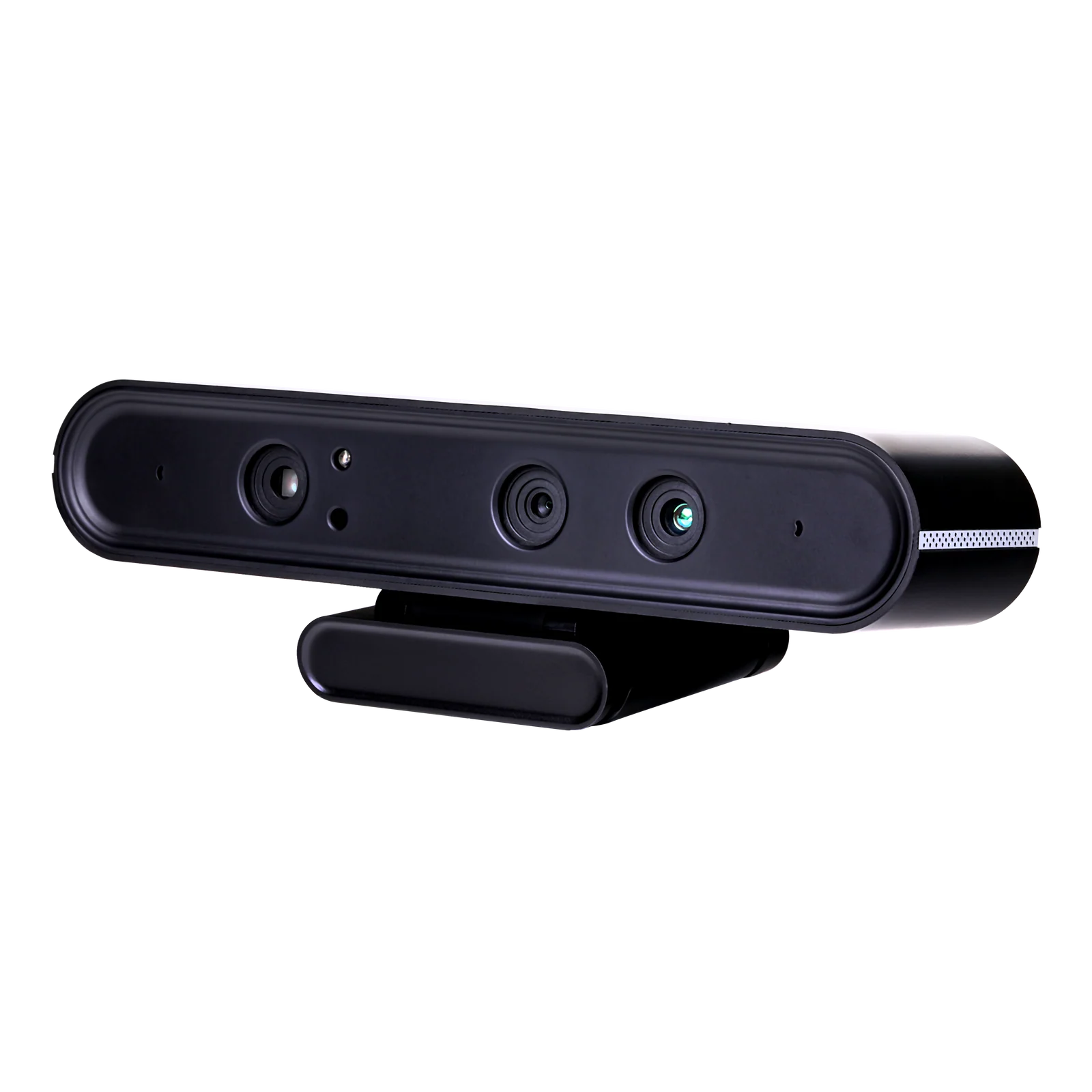

Orbbec Astra

Rp5.870.000

+ Free Shipping
Category: Tags: , Brand:

The Astra series is the first family of 3D cameras from Orbbec. Astra series are based on structured light technology with Orbbec designed ASIC for high quality depth processing and single cable USB 2.0 power + connectivity. The Astra (long-range), Astra S (short-range) and Astra Pro Plus (high resolution RGB) versions provide developers with the freedom to select the right camera best suited for their application needs. The Orbbec OpenNI SDK makes it easy to setup and deliver highly accurate and reliable data for in-door operation.

Operating Environment
10℃ – 40℃; Indoor; 10%-85%RH
Depth Technology
Structured Light
Depth Range
*0.6-8m
Wavelength
850nm
Processor
Orbbec ASIC
IMU
N/A
SDK
Orbbec OpenNI SDK
Spatial Precision
±3mm @ 1m
Depth FoV
58.4°H x 45.5°V
Depth Resolution and Frame Rate
640X480@30fps
RGB FoV
H66.1° V40.2°
RGB Resolution and Frame Rate
1920X1080@30fps
Power Consumption
Average <2.4W
Connector
USB 2.0 Type-A
Weight
310 ± 5g
Dimensions (W*H*D)
165mm x 48mm x 40mm
Installation
Bottom
Brand
