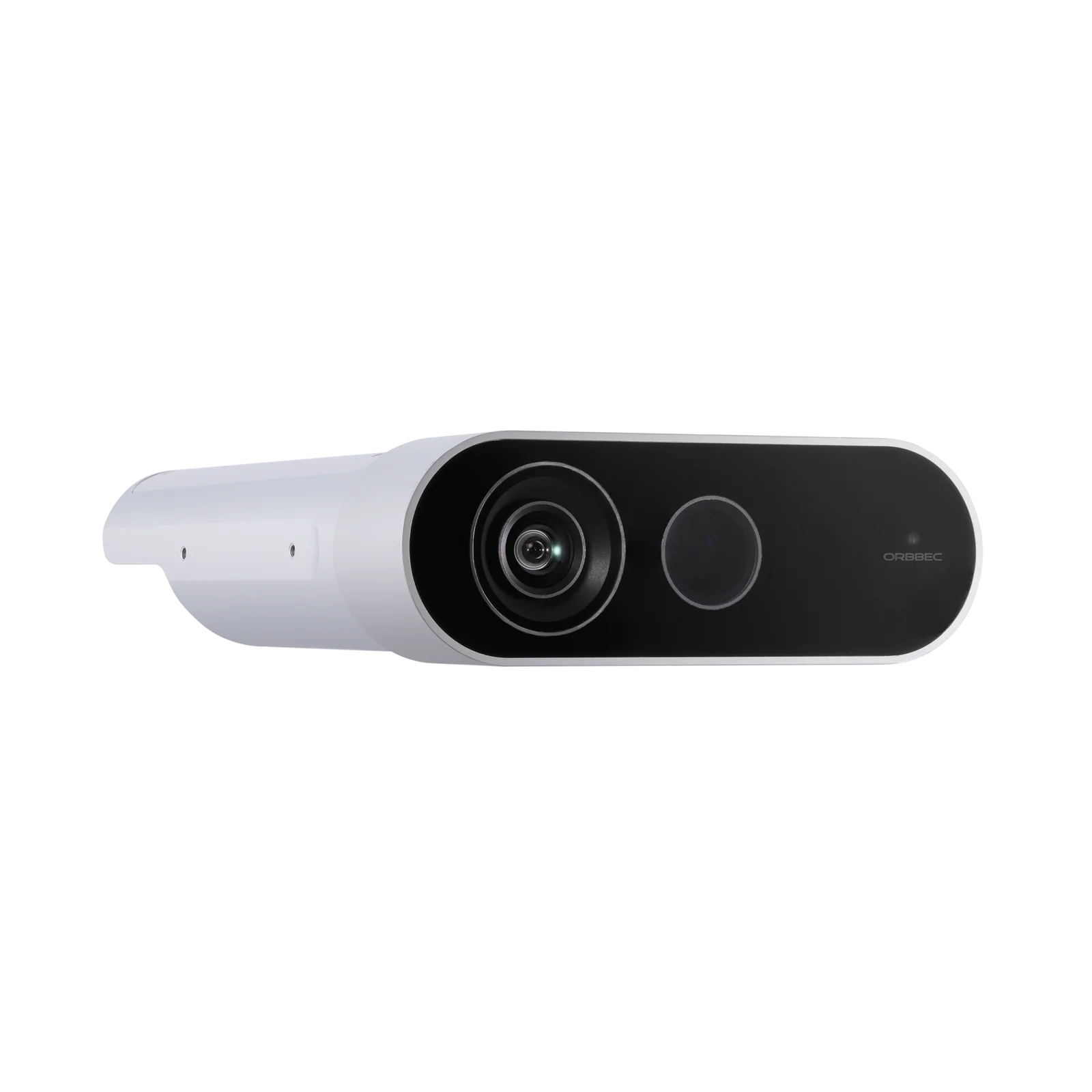

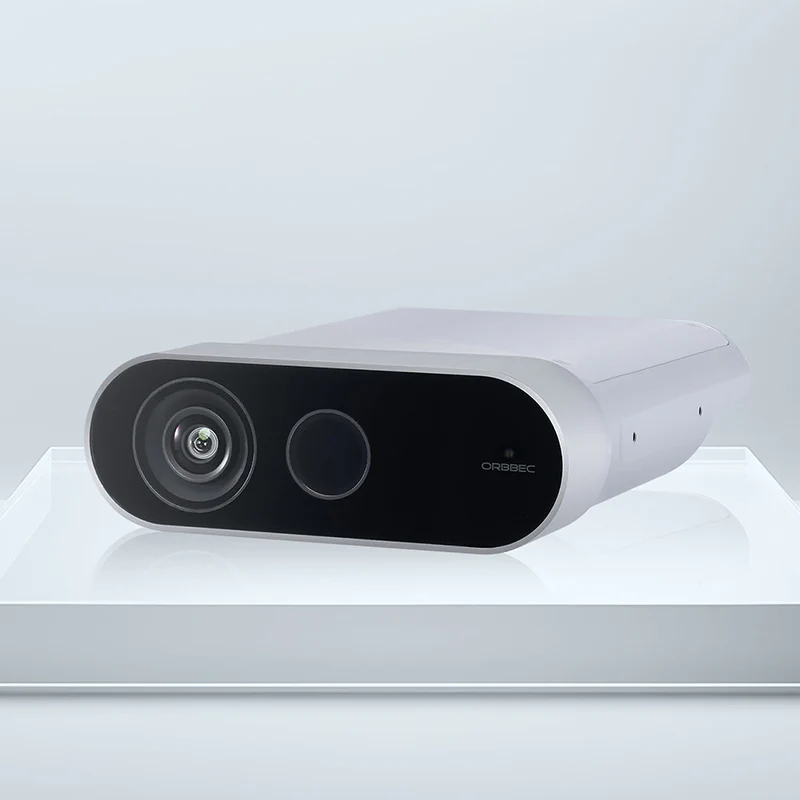

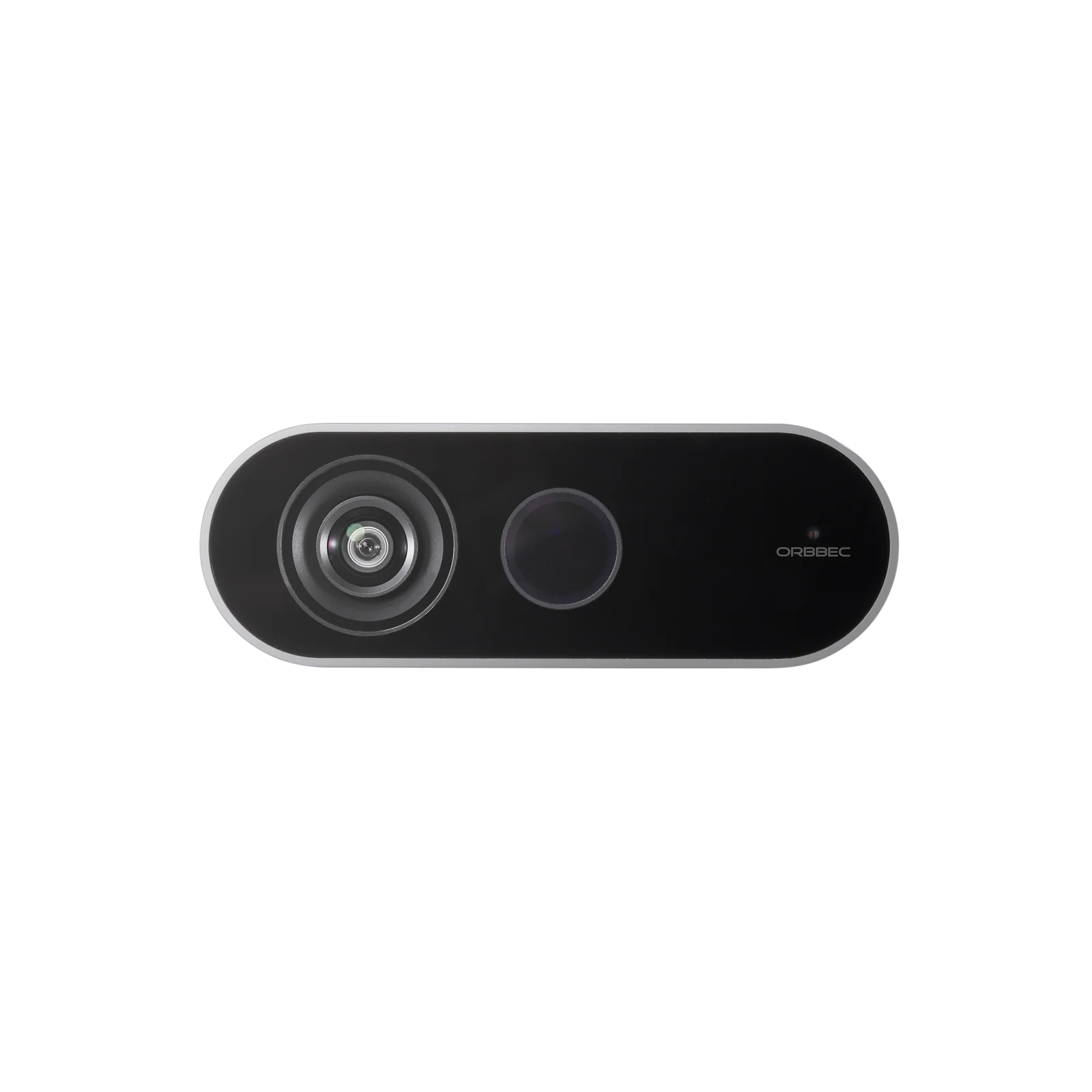

Femto Mega is a next-generation iToF camera co-developed by Orbbec, Microsoft, and NVIDIA. This programmable multi-mode depth and RGB camera offers real-time streaming of processed images over Ethernet or USB connections. It utilizes Microsoft’s industry-proven ToF technology and the NVIDIA® Jetson™ platform to deliver a comprehensive depth and RGB vision solution without requiring additional processing power.
Femto Mega not only provides OrbbecSDK for enhanced PoE performance but also offers a fully compatible API interface with Microsoft Azure Kinect ecosystem applications. Migration documentation are provided for easy transition.
Femto Mega has achieved large-scale and stable mass production, meeting the needs of applications in logistics, robotic arms, manufacturing, retail, healthcare, and fitness.
What’s Included:
Operating Environment
Indoor / Semi-outdoor
Depth Technology
iToF
Depth Range
0.25-5.46m
IMU
Supported
SDK
Orbbec SDK K4A Wrapper Orbbec SDK
Spatial Precision
<11 mm+0.1% distance
Depth FoV
WFoV 120° x 120°, NFoV 75° x 65°
Depth Resolution and Frame Rate
Up to ： 1024 x 1024@15fps
Depth Shutter Type
Global Shutter
RGB FoV
80° x 51°
RGB Resolution and Frame Rate
Up to ：3840 x 2160@25fps
RGB Shutter Type
Rolling Shutter
Power supply
DC：12V / 2A USB：5V / 3A POE：802.3at（24W）
Power Consumption
DC Power + USB data

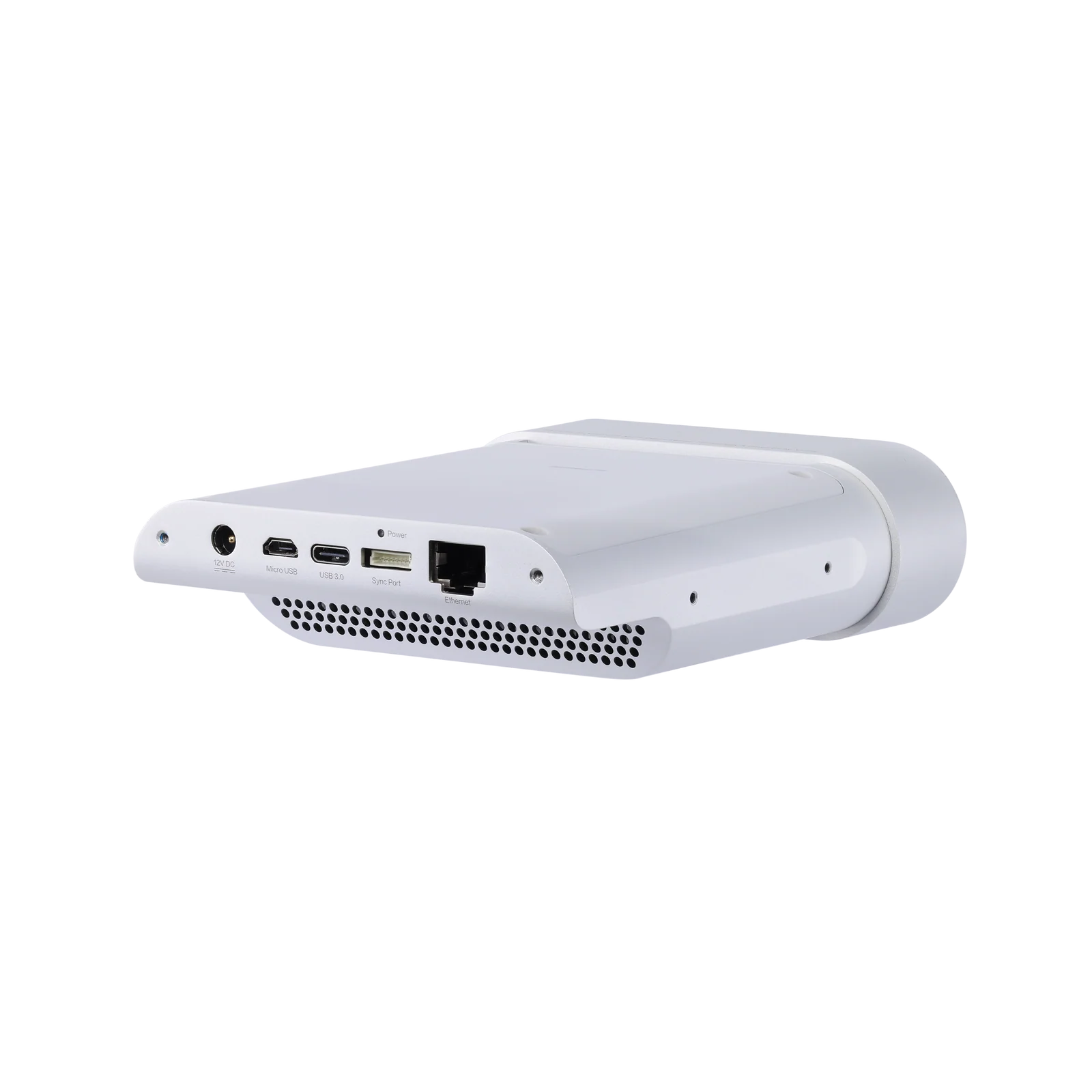

Connector
USB 3.0 Type-C Gigabit Ethernet
Protection
N/A
Multi-device Sync port
8-pin
Operating Temperature
10℃ – 25℃
Weight
560g
Dimensions (W*H*D)
115 x 40 x145mm
Installation
1x 1/4-20 UNC 4x M2.5
