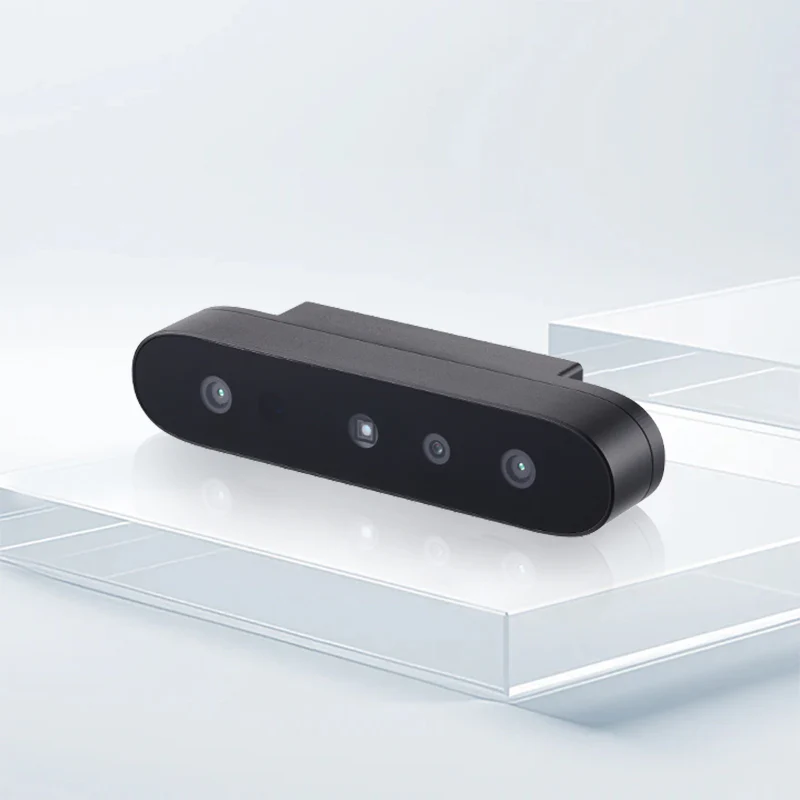

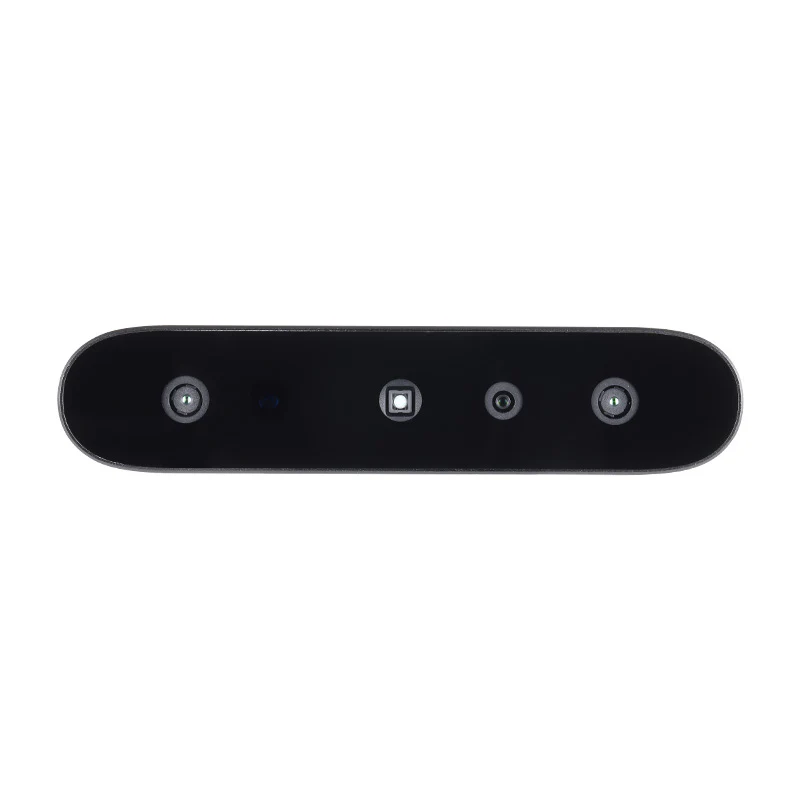

Gemini 215, a member of Orbbec’s stereo vision Gemini series, is specifically designed for high-precision short-range detailed 3D scanning applications such as body part and object scanning.
Powered by Orbbec’s custom ASIC MX6600 and a high-performance optical system, the Gemini 215 excels in short-range indoor scanining, delivering accurate and real-time depth images with fine details.
Supported by the open-source Orbbec SDK, it is easy to develop custom applications on platforms such as Windows and Linux, enabling fast, flexible and scalable project implementation.
What’s Included:
Model
G20000-150
Depth Technology
Active Stereo
Wavelength
850nm
Depth Range
0.15 – 0.70m (Ideal Range 0.2 – 0.5m), Close_Up Precision Mode (0.15m – 0.30m), Extended Distance Mode (0.20m -0.70m）
Depth Resolution/FPS
Up to 1280 × 800 @ 30fps
Depth FoV
H63.0° x V44.8° @ 0.7m
RGB Resolution/FPS
Up to 1920 × 1080 @ 30fps
RGB FoV
H74.7° x V46.2° ± 3°
Processing
Orbbec ASIC
Capture Rate
Up to 30fps
Capture Zone
H126mm x V124mm @ 0.15m; H859mm x V577mm @ 0.7m
Depth Filter
IR-Pass
IMU
Support
Data Connection
Point Cloud, Depth, IR & RGB

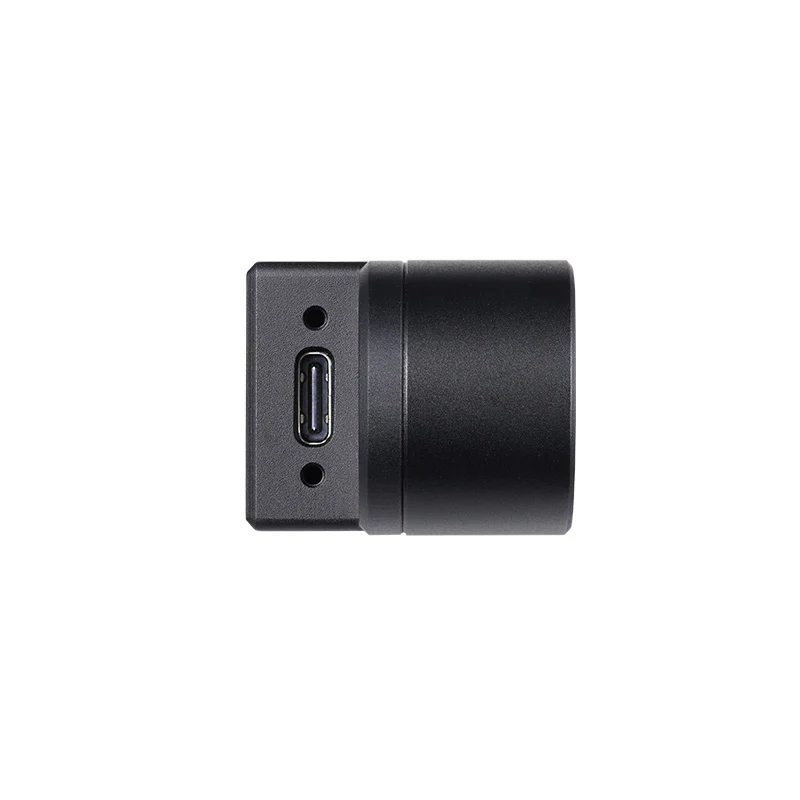

Power Input
USB Type C
Sync Function Trigger
Support
Power Consumption
Average < 2.5W, Max < 7.0W
Operating Environment
0℃ – 40℃; Indoor/Outdoor;5%-90%RH(non-condensing)
SDK Support
Orbbec SDK v2 (Open-source)
Data Output
Point Cloud, Depth, IR & RGB
Dimensions (W*H*D)
120 mm x 26 mm x 30 mm
Weight
105g ± 3g

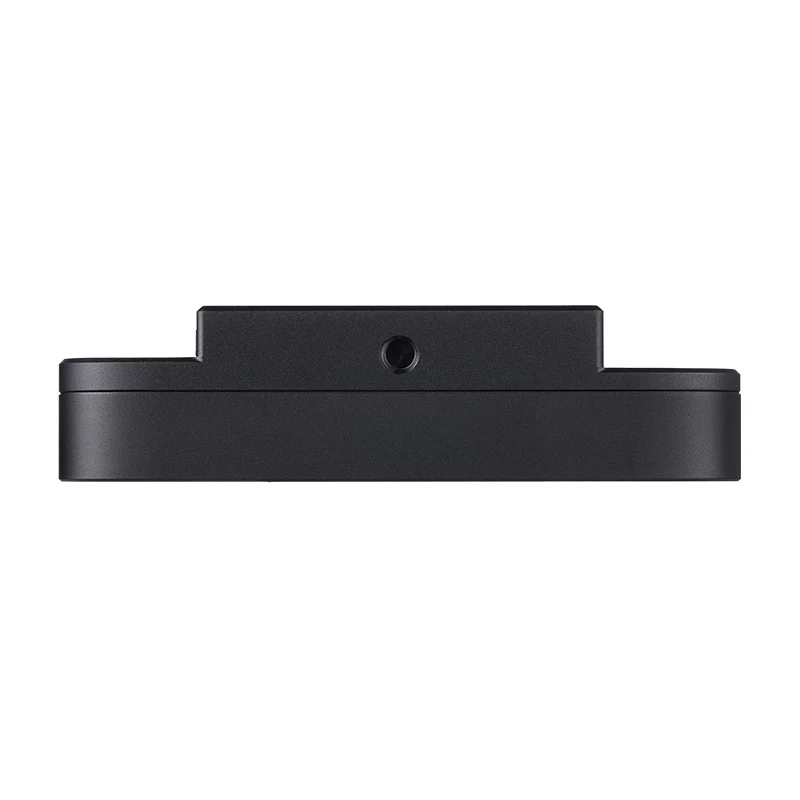

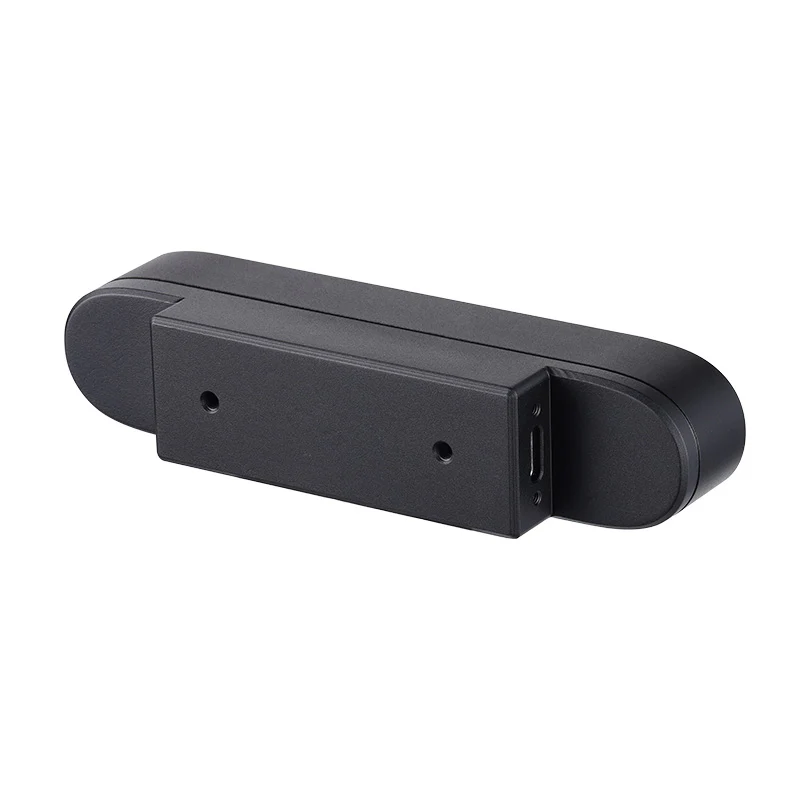

Installation
Bottom 1 x 1/4-20 UNC ; Back 2 x M3
*Spatial Precision
< 0.5 mm（1280 X 800 @ 0.3m） ,< 1.5 mm（1280 X 800 @ 0.6m）
*Theorectical maximum depth range up to 65 meters
* Minimum Point Distance/Resolution 0.16mm @ 0.15m
