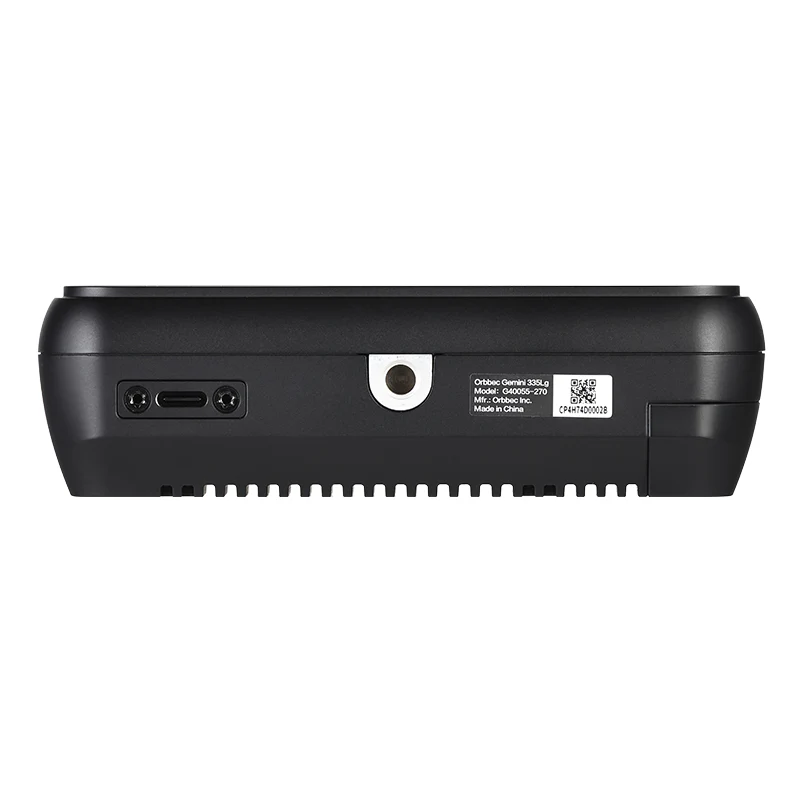

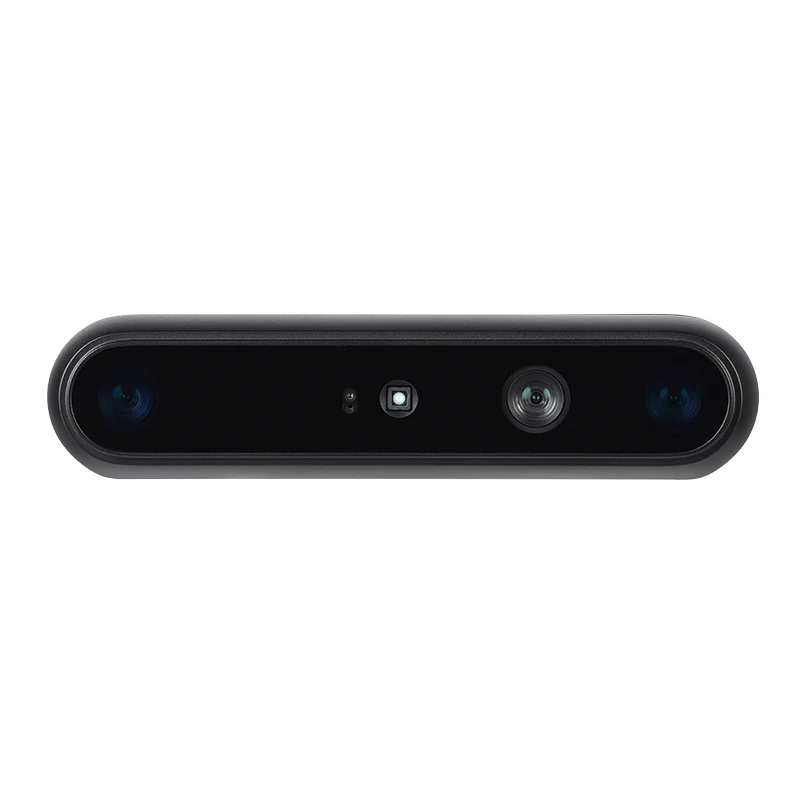

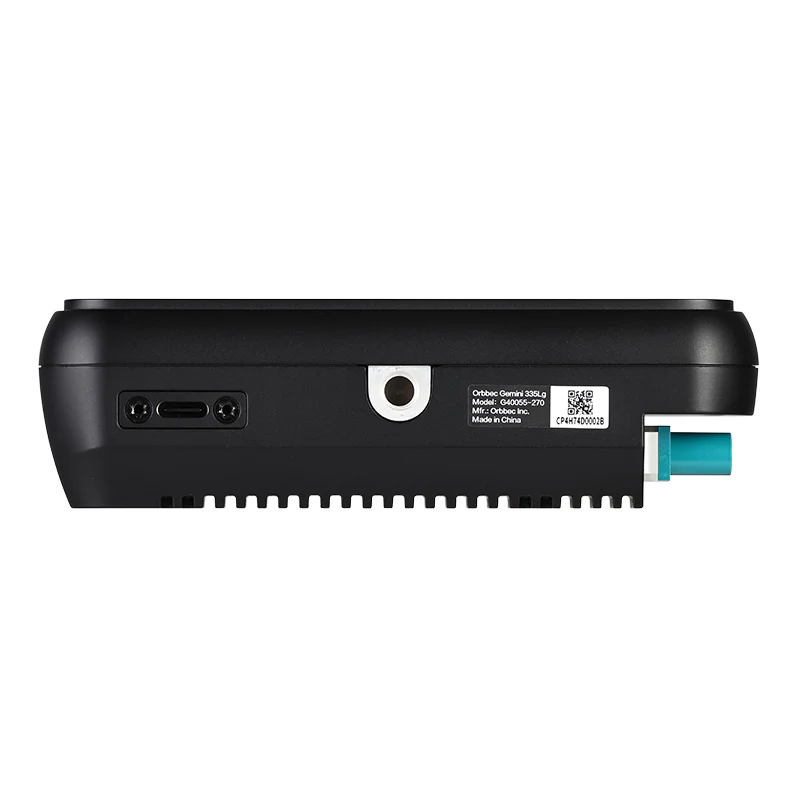

Gemini 335Lg is a standout model in the Gemini 330 series, serving as the GMSL2/FAKRA version of the industry-proven Gemini 335L. The GMSL2 serializer combined with the FAKRA connector ensures secure and reliable connectivity for autonomous mobile robots (AMRs) navigating complex environments and robotic arms requiring flexible cabling.
With GMSL2 (Gigabit Multimedia Serial Link 2 – a high-speed serial communication protocol) and a secure FAKRA connector, the Gemini 335Lg provides more stable and smoother data transmission with higher bandwidth than those with USB interfaces. This configuration is advantageous for robots in motion, as it helps prevent disconnections during high-speed movement, long-distance connections, or in challenging environments with uneven terrain and electromagnetic interference.
What’s Included:
Operating Environment
Indoor & Outdoor
Depth Technology
Active & Passive Stereo
Depth Range
0.17 – 20m+
Ideal Range
0.25 – 6m
IMU
Support
SDK
Orbbec SDK
Baseline
95 mm
Spatial Precision
≤ 0.8% (1280 x 800 @ 2m & 90% x 90% ROI) ≤ 1.6% (1280 x 800 @ 4m & 80% x 80% ROI)
Depth FoV
90° x 65° @ 2m (1280 x 800）
Depth Resolution and Frame Rate
Up to 1280 x 800 @ 30fps
Depth Shutter Type
Global Shutter
RGB FoV
94° x 68°
RGB Resolution and Frame Rate
Up to 1280 x 800 @ 60fps
RGB Image Format
YUYV
RGB Shutter Type
Global Shutter
Power supply
DC 12V & ≥ 0.7A for best performance; DC 12V & ≥ 0.5A for default performance
Power Consumption
≤ 3.5 W
Protection
IP65
Operating Temperature
-10 – 50℃
Weight
160g
Dimensions (W*H*D)
124 mm x 29mm x 36 mm
MIPI Mode
FAKRA-Z
USB Mode
USB Type-C + 8-pin Sync Port
