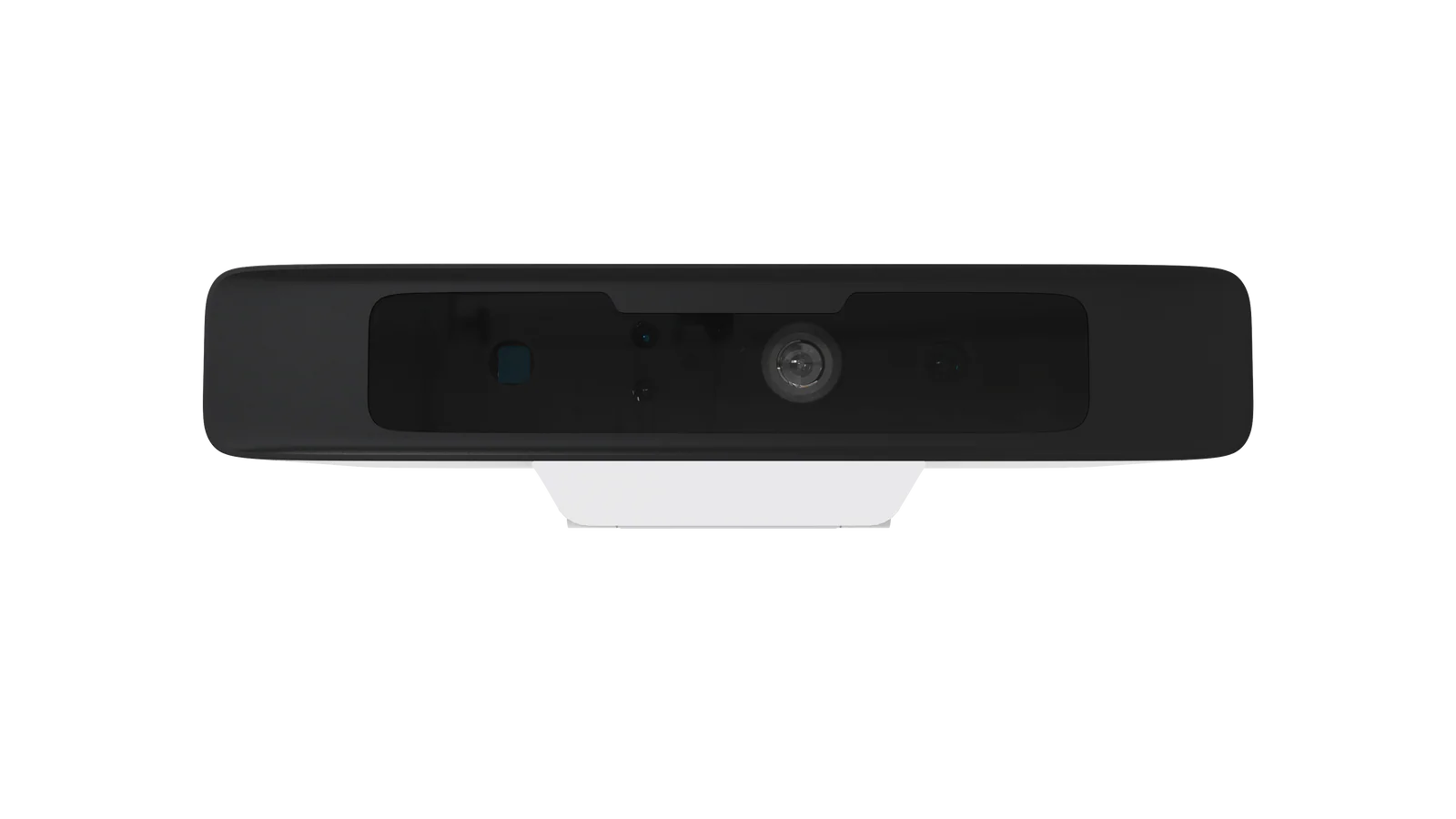

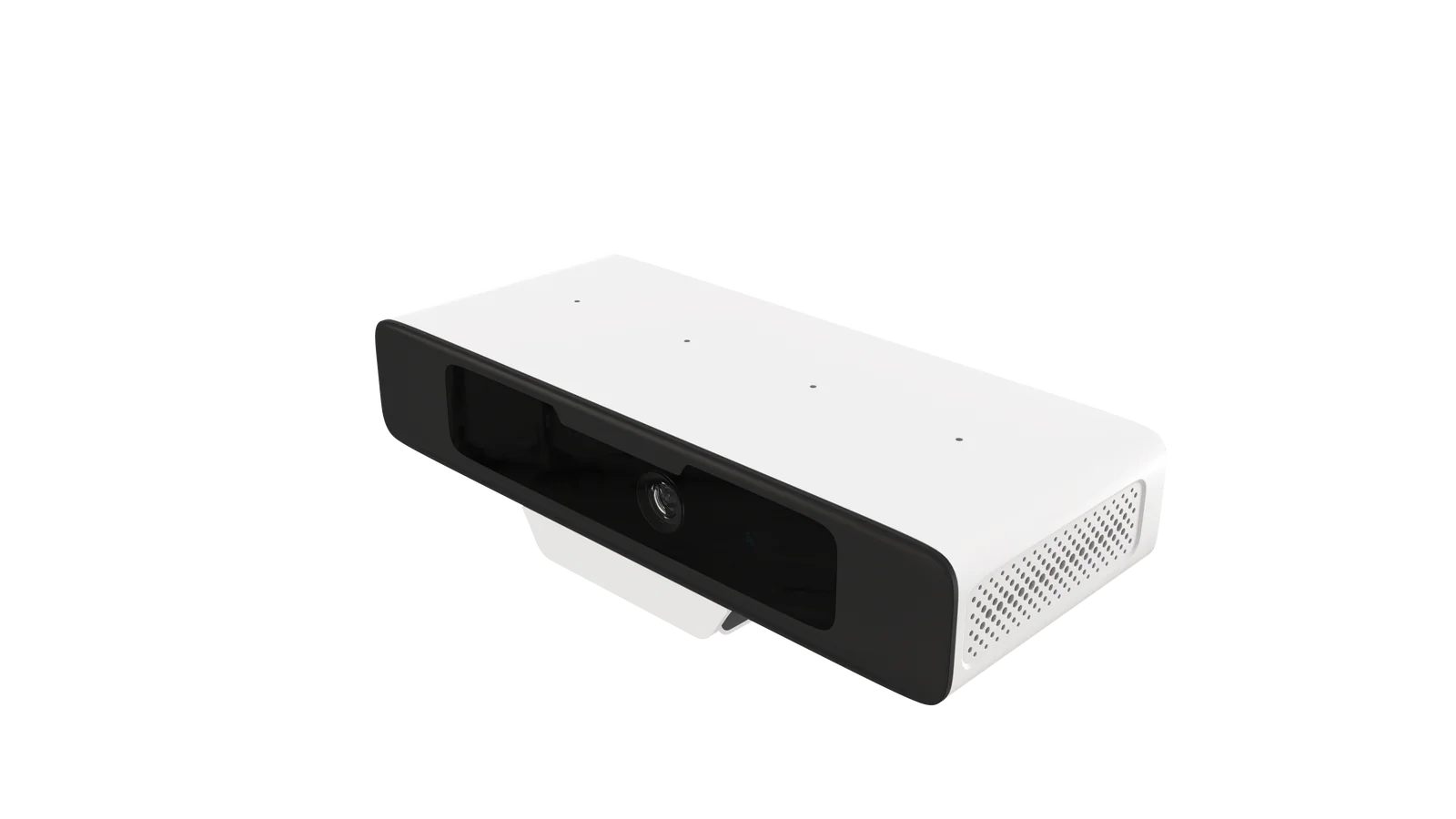

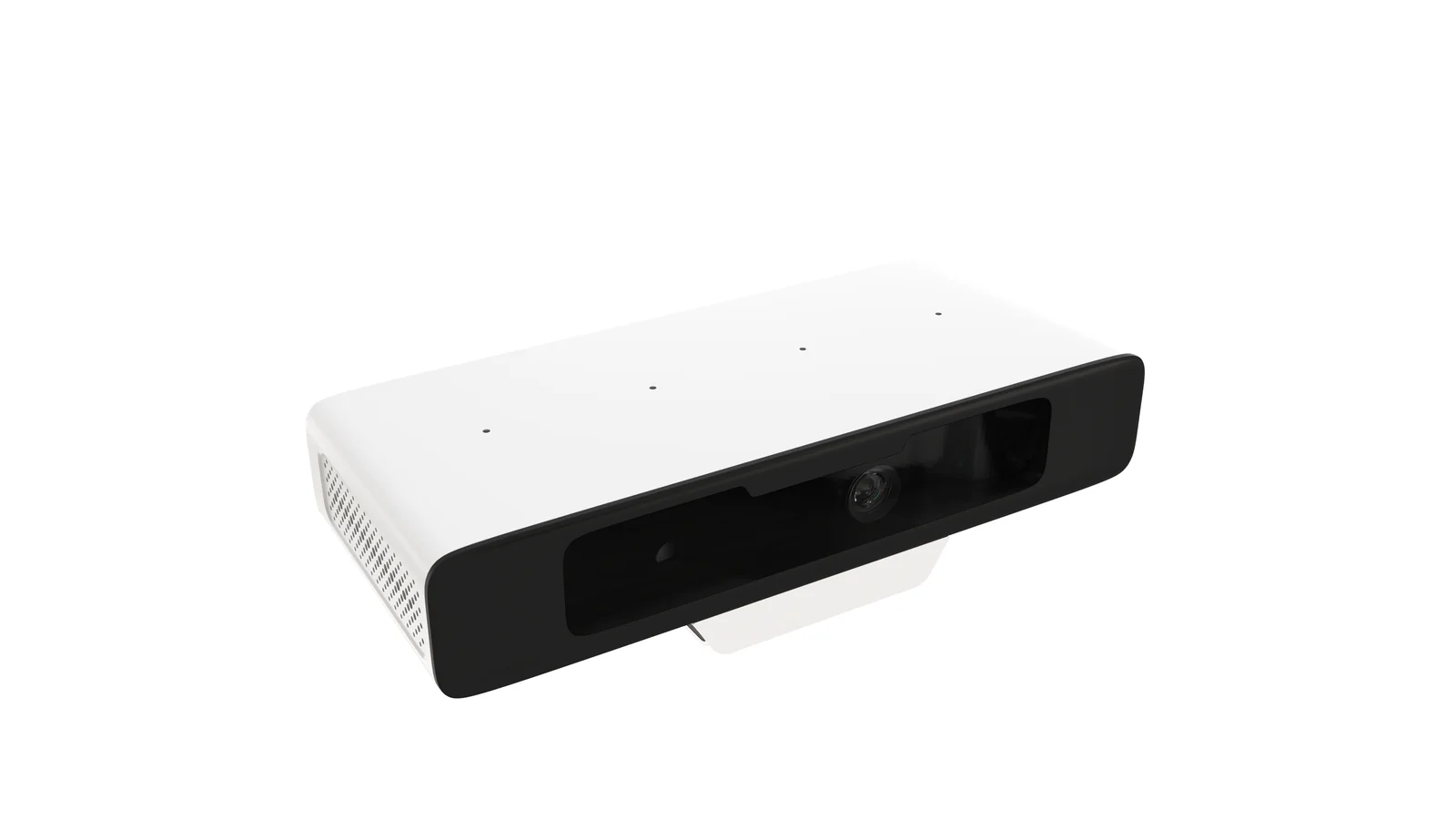

Persee+, with an integrated camera+computer product, is based on structured light technology and uses Orbbec’s custom ASIC for high quality depth processing. It’s the successor to Persee. In addition to a high performance camera with built-in depth processing, it also has a Amlogic A311D processor with high performance GPU and NPU to run user applications. Android/Linux support and a choice of multiple port selections including ethernet, USB, HDMI, headphone jack and MicroSD, makes Persee+ the ideal all-in-one solution for low-cost and compact design. The Orbbec SDK makes it easy to setup and deliver highly accurate and reliable data for in-door operation.
What’s Included:
Operating Environment
0℃ -30℃; Indoor; 10%-90%RH
Depth Technology
Structured Light
Depth Range
*0.6-8m
Wavelength
850nm
Processor
Amlogic A311D Quad Core A73+ Dual Core A53 with NPU Orbbec ASIC for Depth Processing,
SDK
Orbbec SDK; Built-In Android 9.0/Ubuntu 18.04
Depth FoV
H58.4° V45.5°
Depth Resolution and Frame Rate
Up to 1280X1024@30fps
RGB FoV
H69.2° V52°
RGB Resolution and Frame Rate
Up to 1920X1080@30fps
RAM/Storage
4GB/ 32GB
WiFi/BT
802.11a/b/g/n/ac, Bluetooth 5.0
Power Input
DC 12V/2A

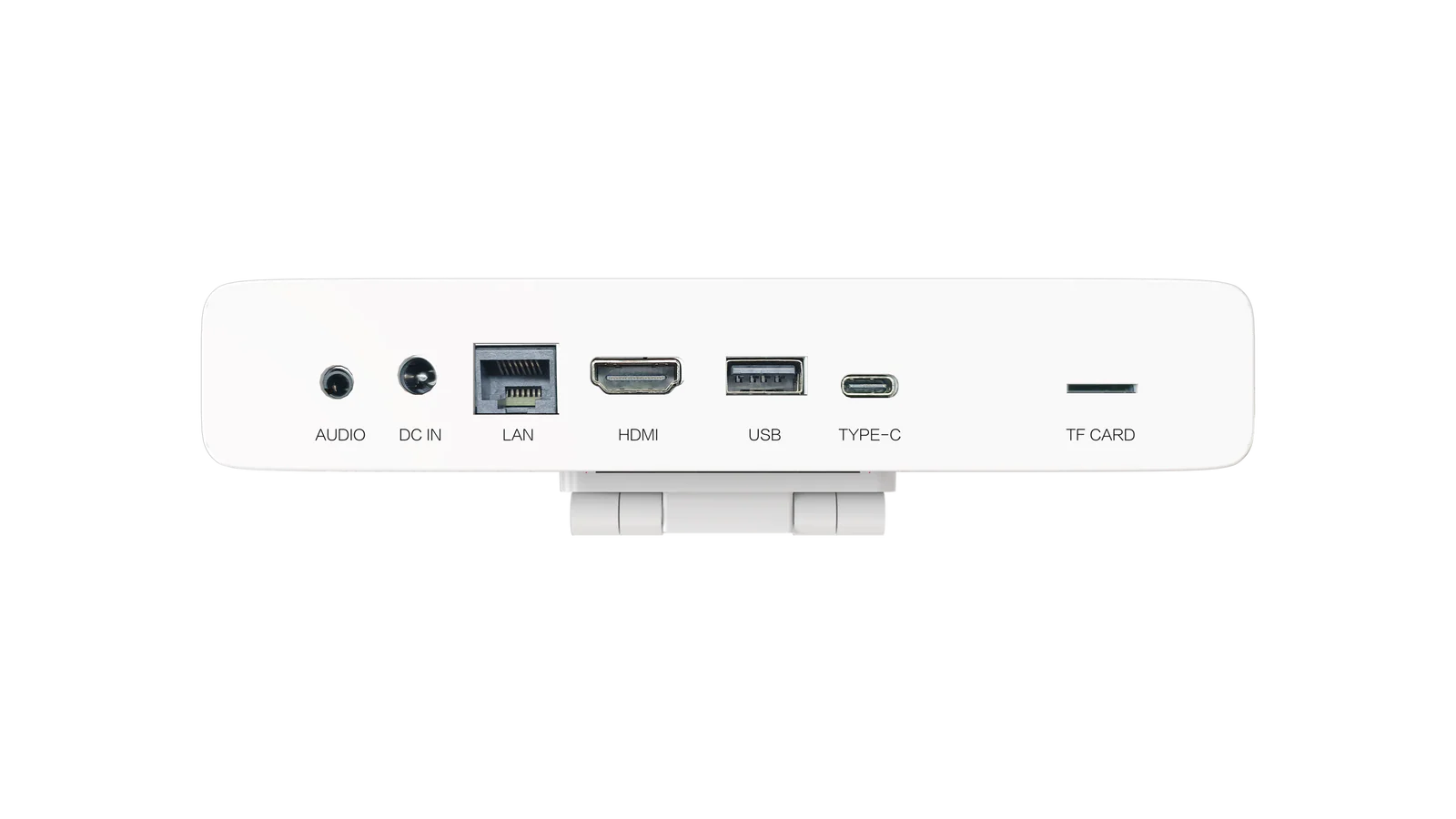

Ports
USB 2.0 Type-A, USB 2.0 Type-C (Debug and Firmware Update), Gigabit Ethernet, HDMI 2.0, 3.5mm Audio Output, MicroSD Expansion Slot
Microphone
4 Microphone Linear Microphone Array
Weight
370g
Dimensions (W*H*D)
178mm x 46mm x 75mm

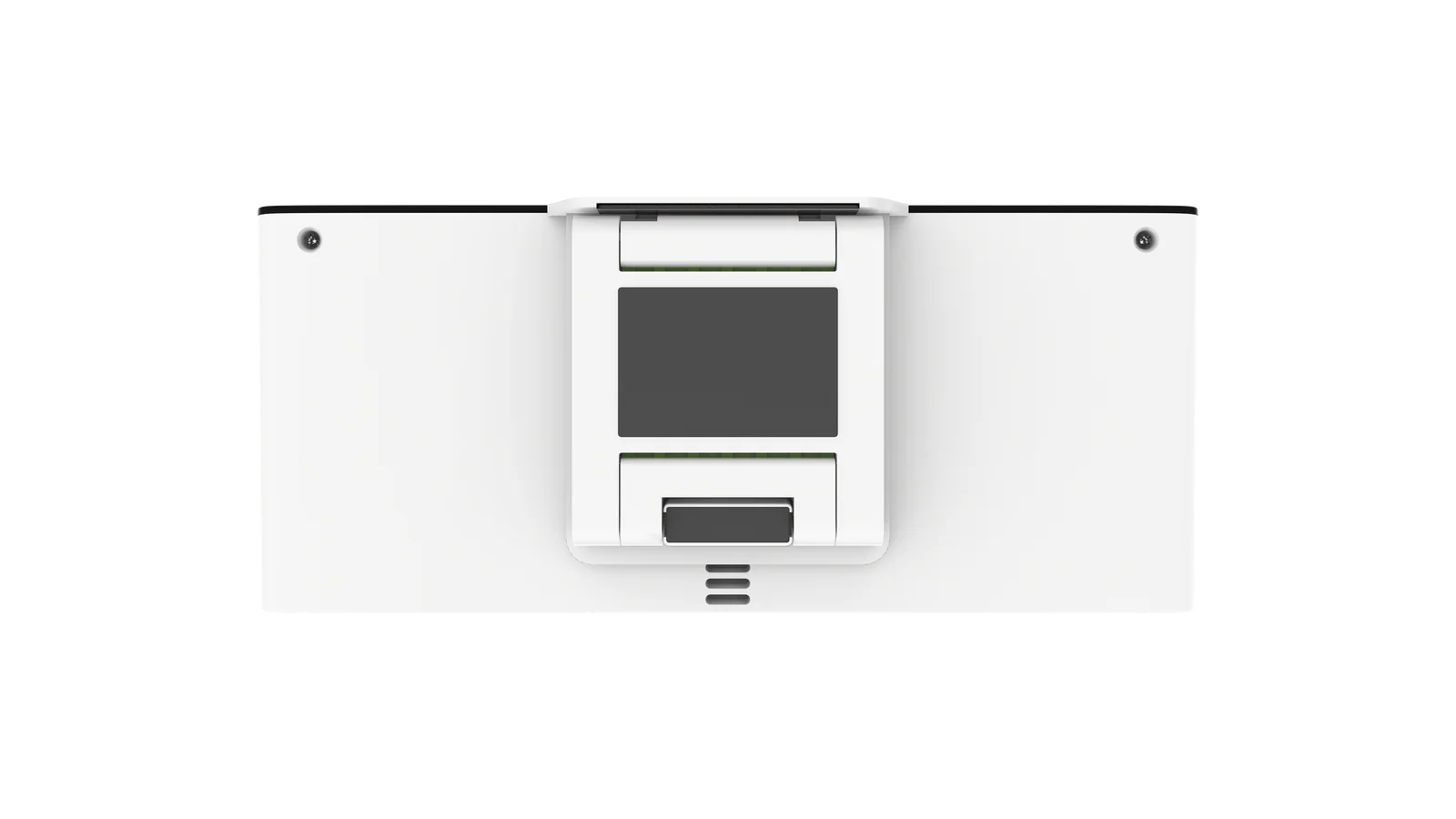

Installation
Bottom ¼-20UNC
