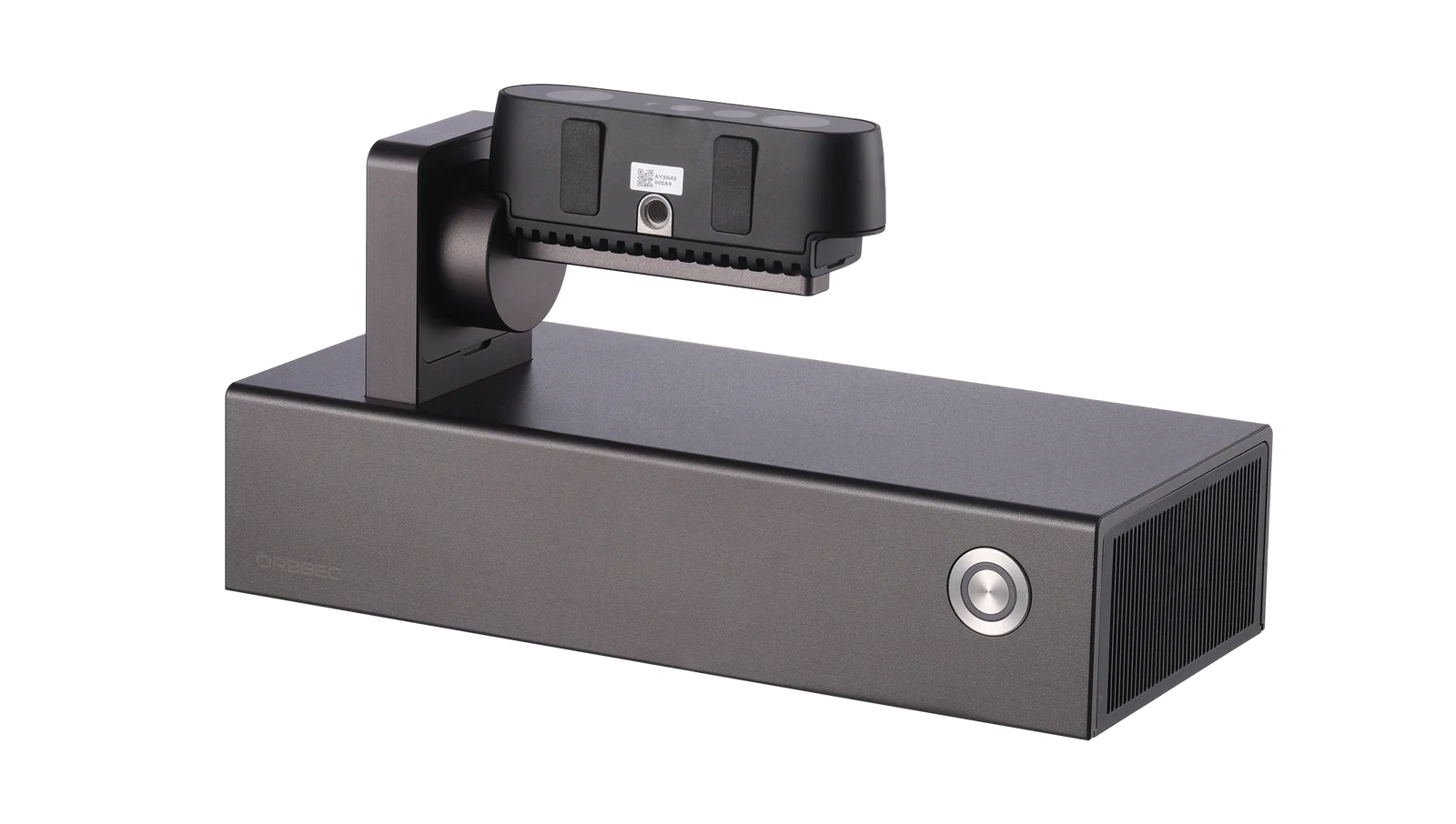

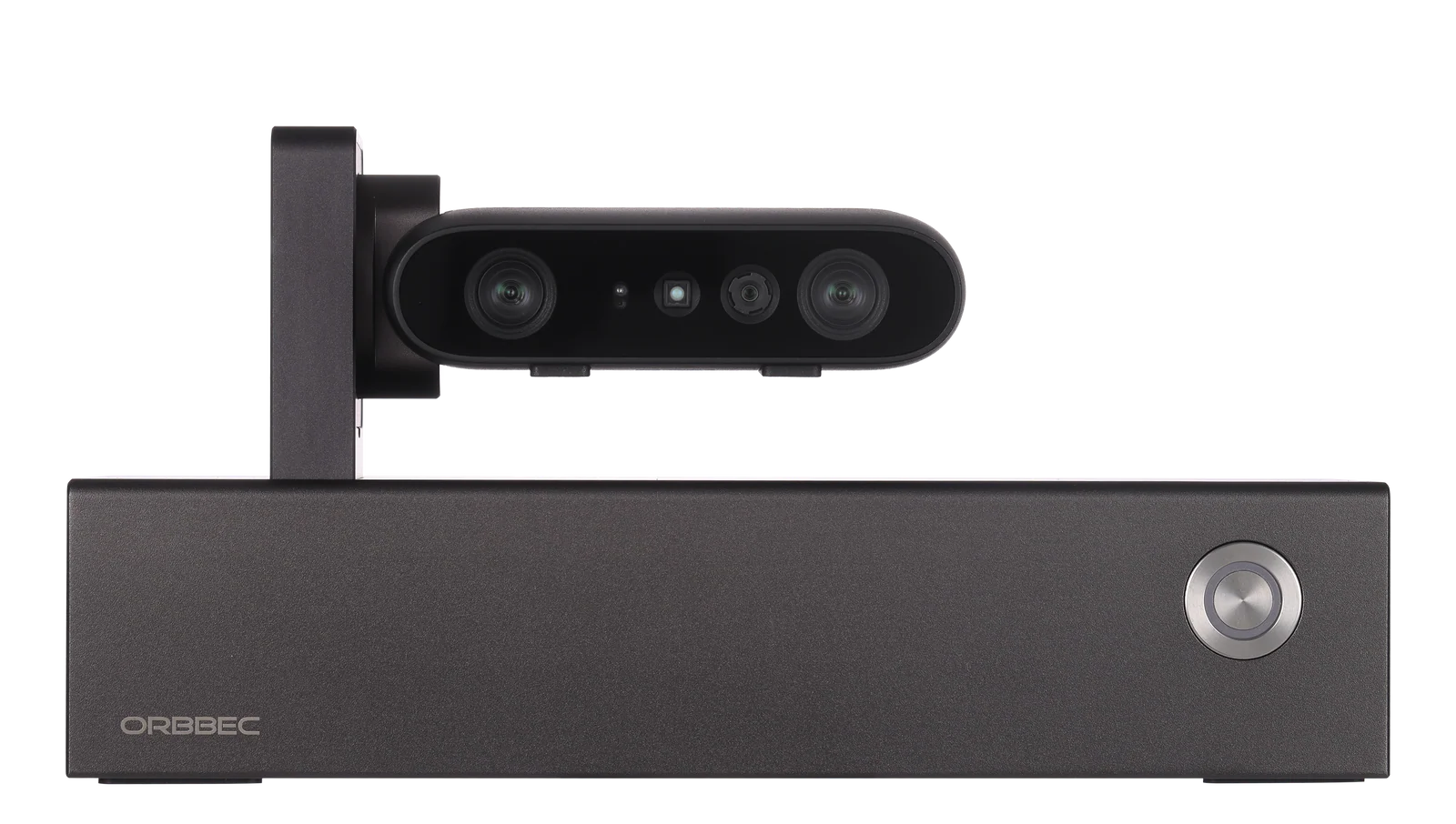

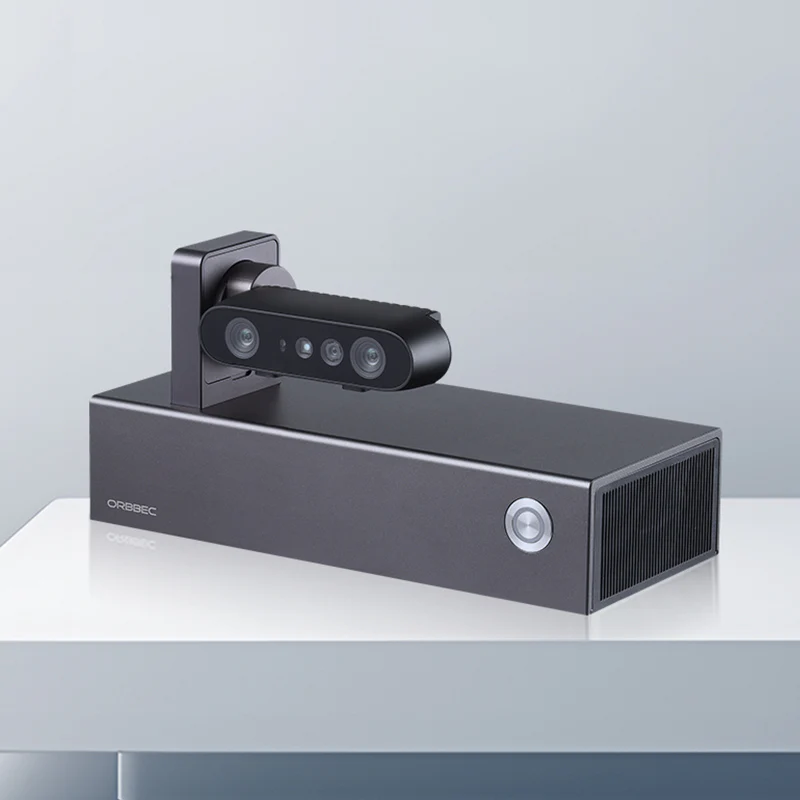

The Persee N1, co-developed by Orbbec and NVIDIA, is a 3D development kit that integrates the high-performance Gemini 2 stereo camera with the versatile NVIDIA Jetson Nano platform. In addition to its default configuration, this kit supports flexible integration of various Orbbec 3D cameras and NVIDIA computing platforms to meet user needs.
The kit features a diverse range of hardware interfaces, catering to robotics, smart vehicles, and human reconstruction control requirements. It also supports software platforms such as NVIDIA Jetpack, VisionWorks, and DeepStream, enabling the development, validation, deployment, and optimization of 3D-related projects from the NVIDIA open-source community, including motion sensing, obstacle avoidance, and volume measurement. This reduces development costs and further promotes innovation in 3D applications and the commercialization of smart camera products.
What’s Included:
Model
4GB RAM + 16GB Storage
Operating Environment
Indoor/Semi-Outdoor; 5%-95%RH
Depth Technology
Active Stereo IR
Depth Range
*0.15-10m
Wavelength
850nm
Processor
NVIDIA Jetson Nano Quad Core ARM A57 @ 1.43 GHz Orbbec ASIC for Depth Processing,
SDK
Orbbec SDK; Built-In Ubuntu 18.04
Depth FoV
H91° V66°
Depth Resolution and Frame Rate
Up to 1280X800@30fps
RGB FoV
H86° V55°
RGB Resolution and Frame Rate
Up to 1920X1080@30fps
RAM/Storage
4GB/ 16GB with expansion slot
WiFi/BT
N/A
Power Input
DC 12V/3A or PoE
Ports

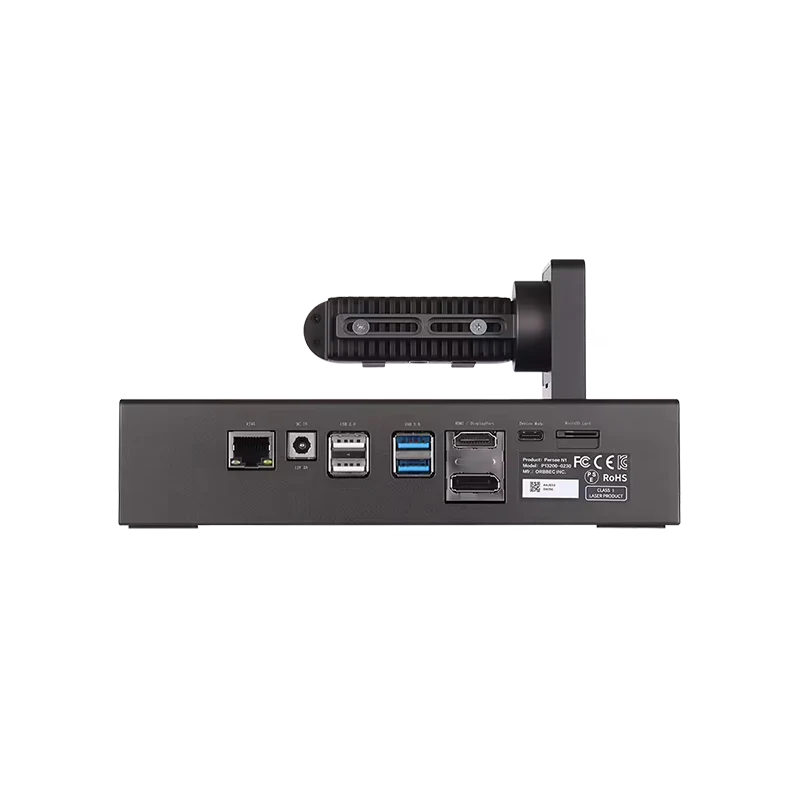

USB 3.0 Type-A x 2, USB 2.0 Type-A x 2, USB Type-C (Device Mode Only), Gigabit Ethernet with PoE, HDMI, DisplayPort, MicroSD, M.2 Expansion Slot
Microphone
N/A
Weight
986g
Dimensions (W*H*D)
200mm x 100mm x 90mm
