Orbbec Gemini 336L

Gemini 336L is the latest addition to Orbbec’s Gemini 330 series.
Building on the outstanding depth performance and quality of the Gemini 335L, the Gemini 336L improves active infrared imaging by filtering out the visible light spectrum. This enhancement ensures stable and precise imaging even under challenging lighting conditions, such as reflective indoor surfaces that cause glare.

What’s Included:

● Gemini 336L 3D Camera
● USB-C to USB-A cable
● Tripod
● Tripod head
● Quick Start Doc

Operating Environment
Indoor / Outdoor
Depth Technology
Active & Passive Stereo
Depth Range
0.17 – 20m+
Ideal Range
0.25 – 6m
IMU
Supported
Camera Driver
UVC
SDK
Orbbec SDK
Baseline
95 mm
Spatial Precision
≤ 0.8% （1280 x 800 @ 2m & 90% x 90% ROI） ≤1.6% (1280 x 800 @ 4m & 80% x 80% ROI)
Depth FoV
Up to 90° x 65° @ 2m (1280 x 800）
Depth Resolution and Frame Rate
Up to 1280 x 800 @ 30fps
Depth Shutter Type
Global Shutter
RGB FoV
94° x 68°
RGB Resolution and Frame Rate
Up to 1280 x 800 @ 60fps
RGB Image Format
YUYV & MJPEG
RGB Shutter Type
Global Shutter
Power supply
DC 5V & ≥ 1.5A
Power Consumption
＜ 3W
IR Filter Cover
IR-Pass
Connector
USB 3.0 & USB 2.0 Type-C
Protection
IP65
Multi-device Sync port
8-pin
Operating Temperature
-10 – 50℃
Weight
135g
Dimensions (W*H*D)
124 mm x 29mm x 27.7 mm
Installation

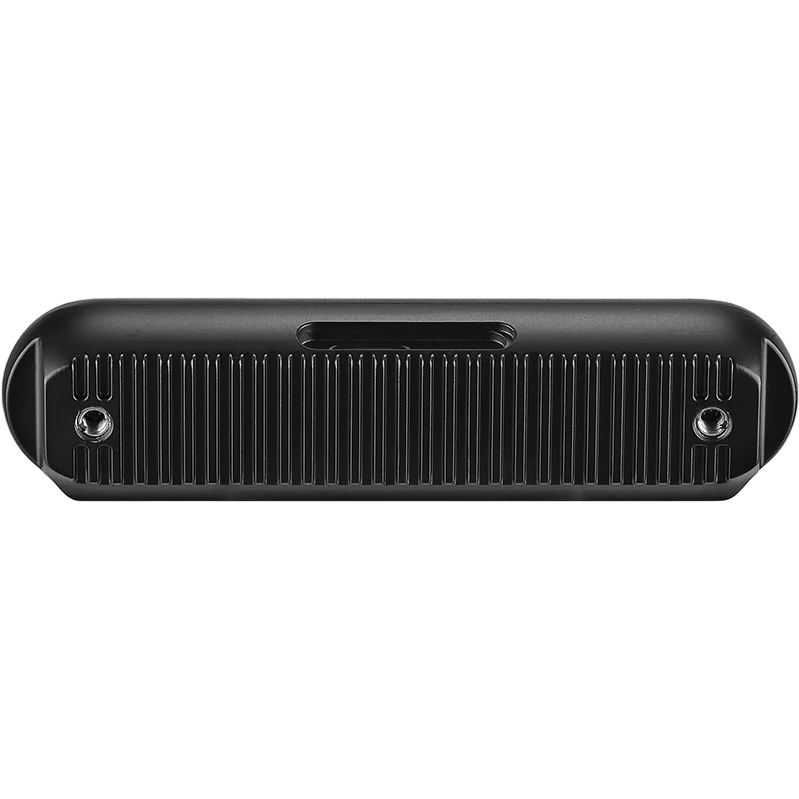

Bottom 1x 1/4-20 UNC, Max Torque 4.0 N.m, Back 2x M4, Max Torque 0.4 N.m
